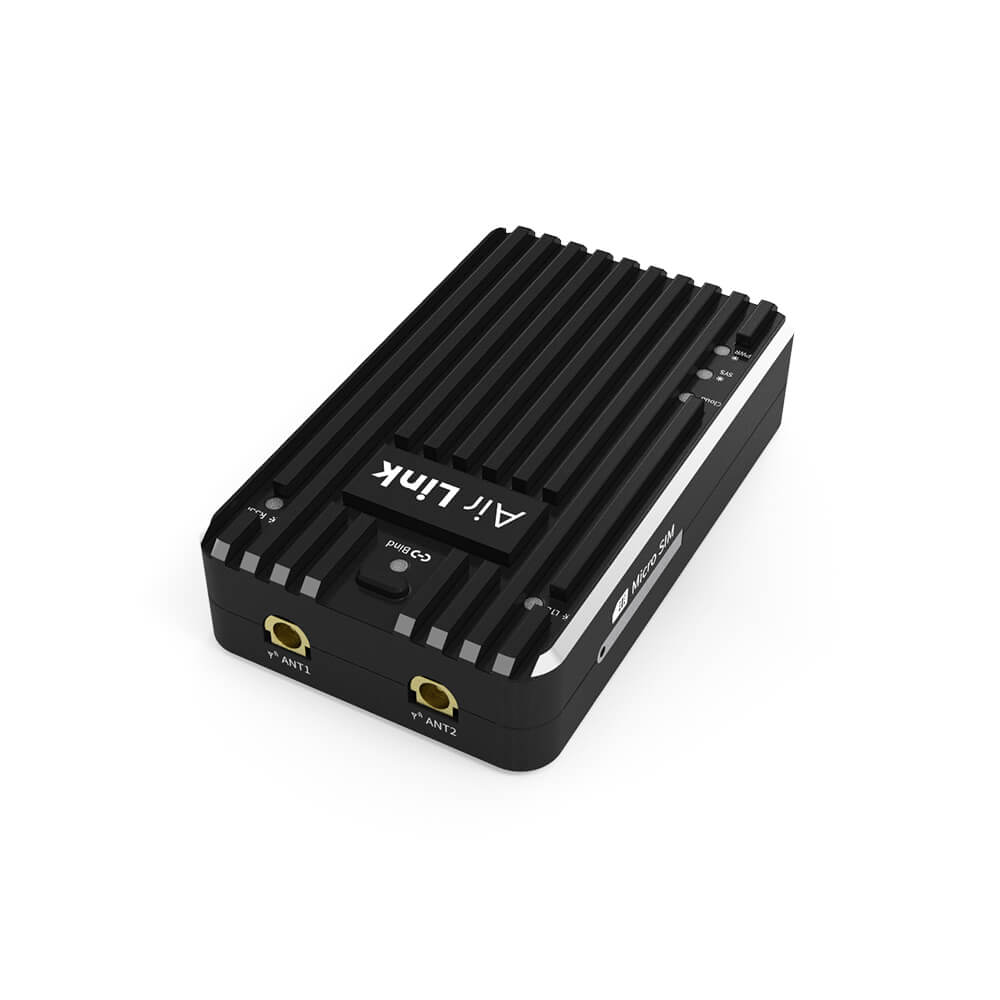

Air Link 4G Data Telemetry
The cost-effective digital data telemetry developed by CUAV supports 4G/3G/2G network with network delay as low as 40~20ms.

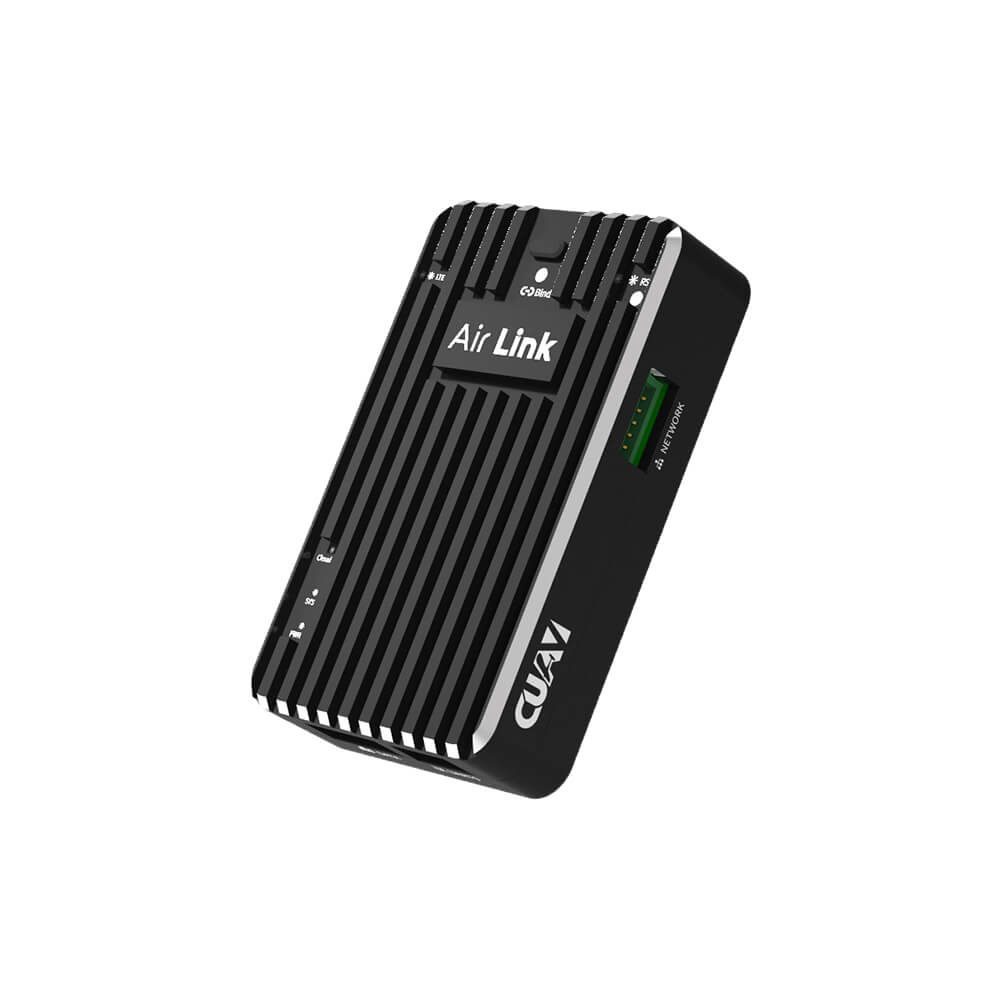

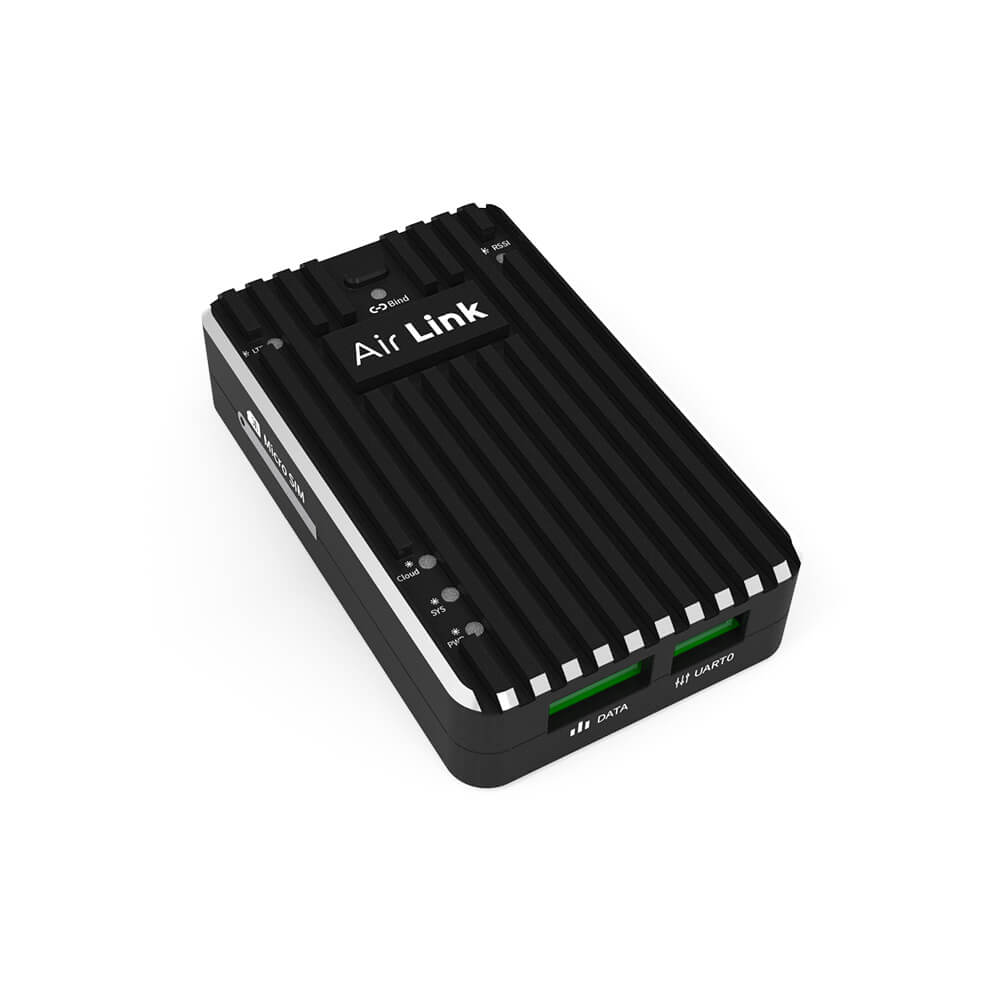

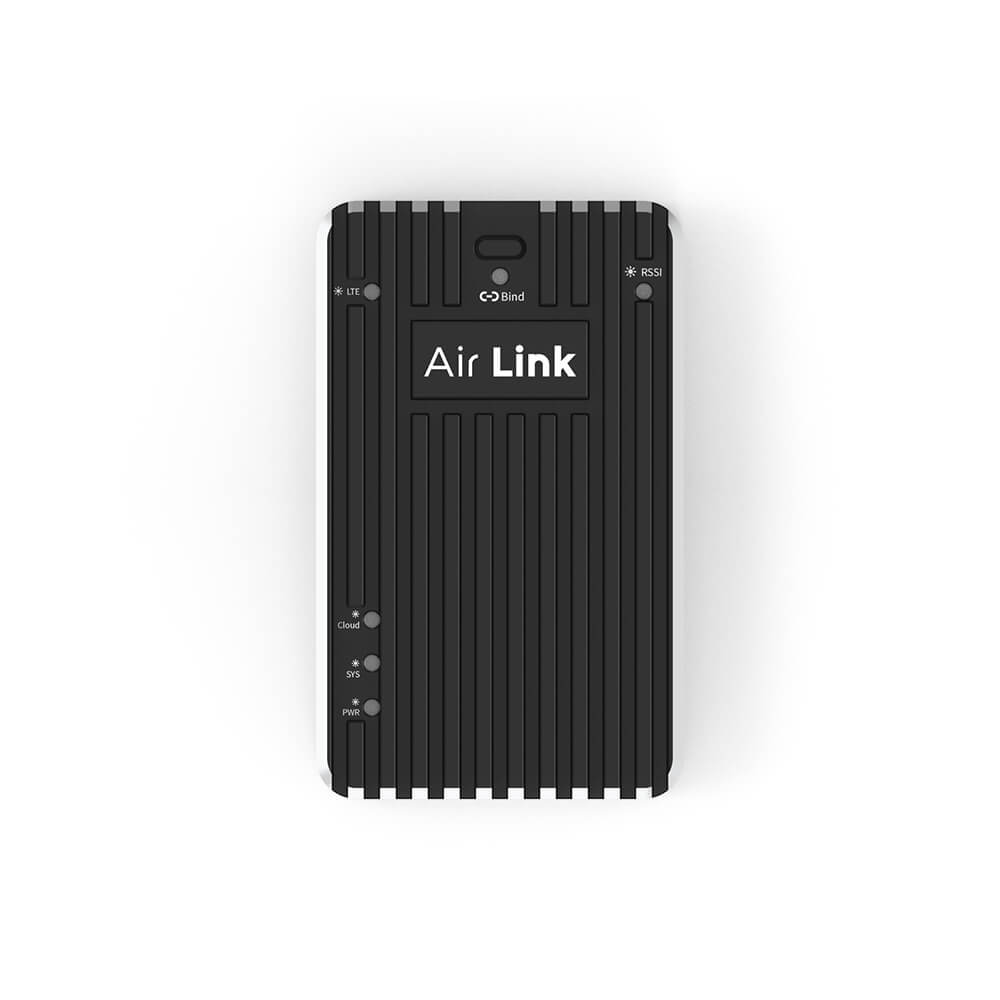

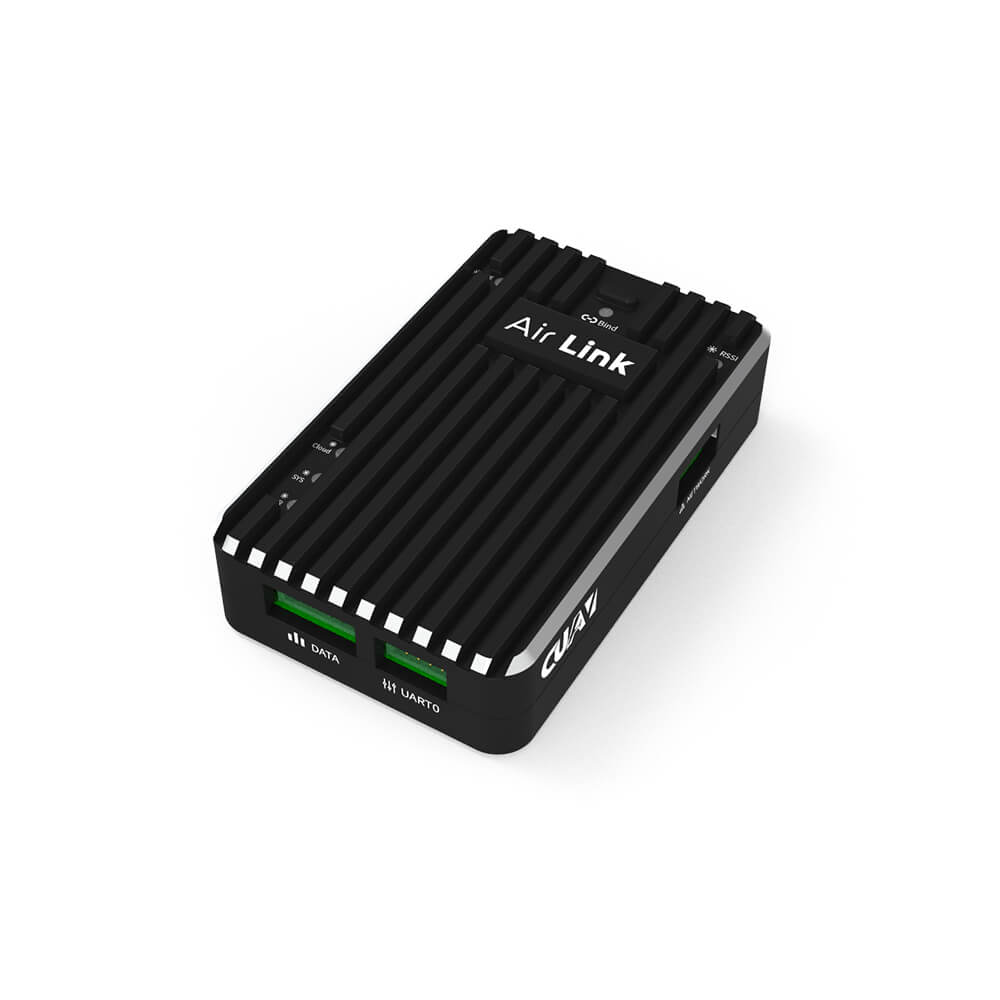

About Air Link
Air Link is a network data communication link independently developed by CUAV. It relies on the LTE wireless network (public or private network) to build a data interaction network between users and drones, allowing you to control the flight status of the drone. Compared with the traditional point-to-point data transmission, it has the characteristics of unlimited distance transmission, background monitoring and convenient deployment.

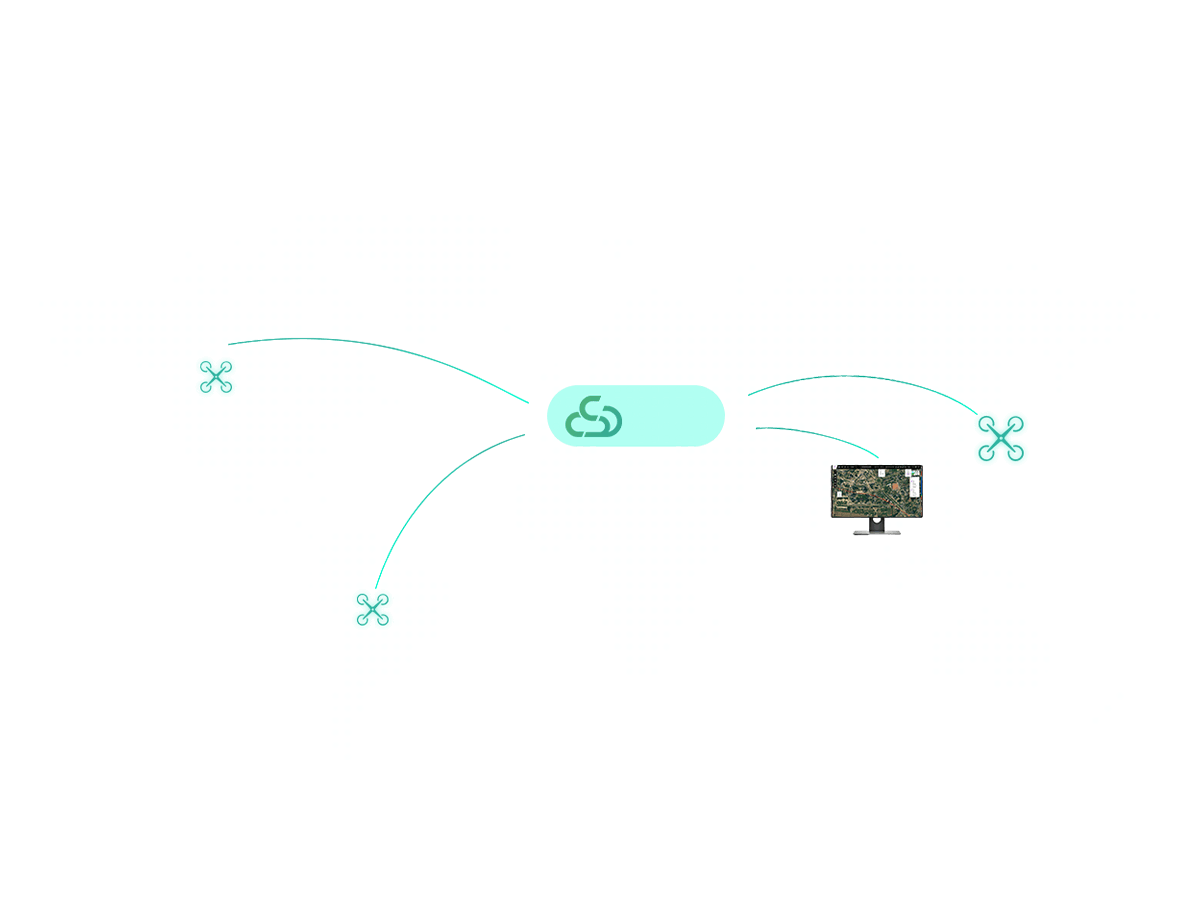

Unlimited interconnection
Relying on the advanced 4G communication network, the anti-interference ability is strong, the data security level is high, and the area covered by the 4G signal can communicate. The client operates the drone without the limitation of distance and area, realizing the real drone networking.
Multi-client support
It not only supports CUAV self-developed client, but also supports two open source ground stations of QGroundControl and MissonPlanner, and allows users to customize the client supporting Mavlink protocol.
FeiGong Ground Station
CUAV GS
FeiGong Transmission
Misson Planner
QGroundControl
Third party client

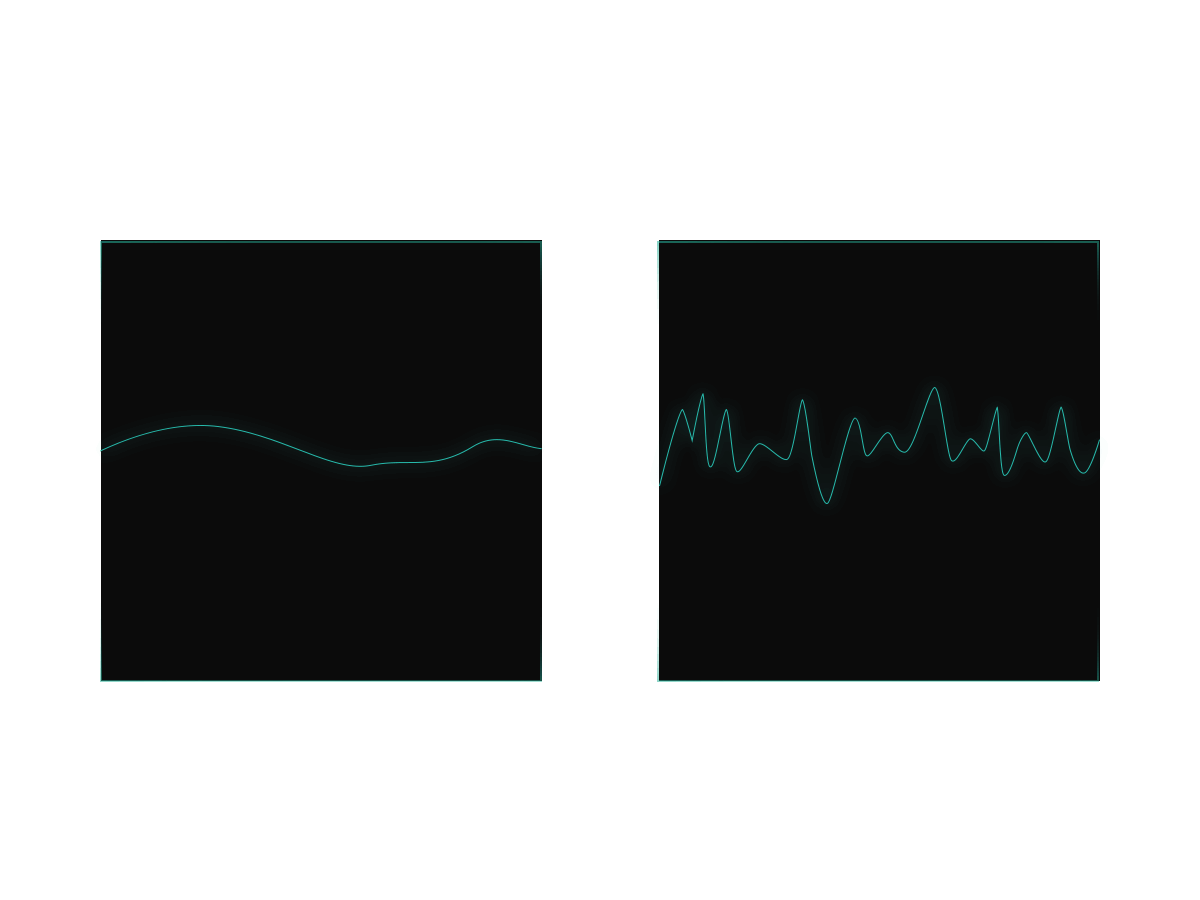

Stable and safe
Relative to the traditional communication frequency band is easily interfered, Air Link takes advantage of the 4G network to maintain normal communication where there is network coverage. At the same time, Air Link, client and server all use data encryption transmission to fully guarantee the communication data security of the drone.
Specifications /Air link 4G data telemety
| Product Performance | |
|---|---|
| Network Frequency | LTE (FDD): B1、B3、B8 LTE (TDD): B38、B39、B40、B41 DC-HSPA+/HSPA+/HSPA/UMTS : B1、B5、B8、B9 TD-SCDMA: B34、B39 EDGE/GPRS/GSM : 900/1800 MHz |
| Network Rate | DC-HSPA+: Download:42 Mbps uploda: 5.76 Mbps LTE TDD: Downlaod:112Mbps uploda: 10Mbps LTE FDD: Downlaod:150 Mbps uploda: 50 Mbps |
| Autopilot | CUAV Autopilot,Pixhawk etc |
| Data protocol | Mavlink1、Mavlink2 |
| Communication delay | 20-40ms |
| Autopilot type | V5+、V5 Nano、Pixhack、Pixhawk etc |
| Autopilot firmware | PX4/Ardupilot |
| Antenna interface | MMCX inner hole | Work Environment |
| Voltage input | 12 - 55V |
| Temperature | -10 - +60°C |

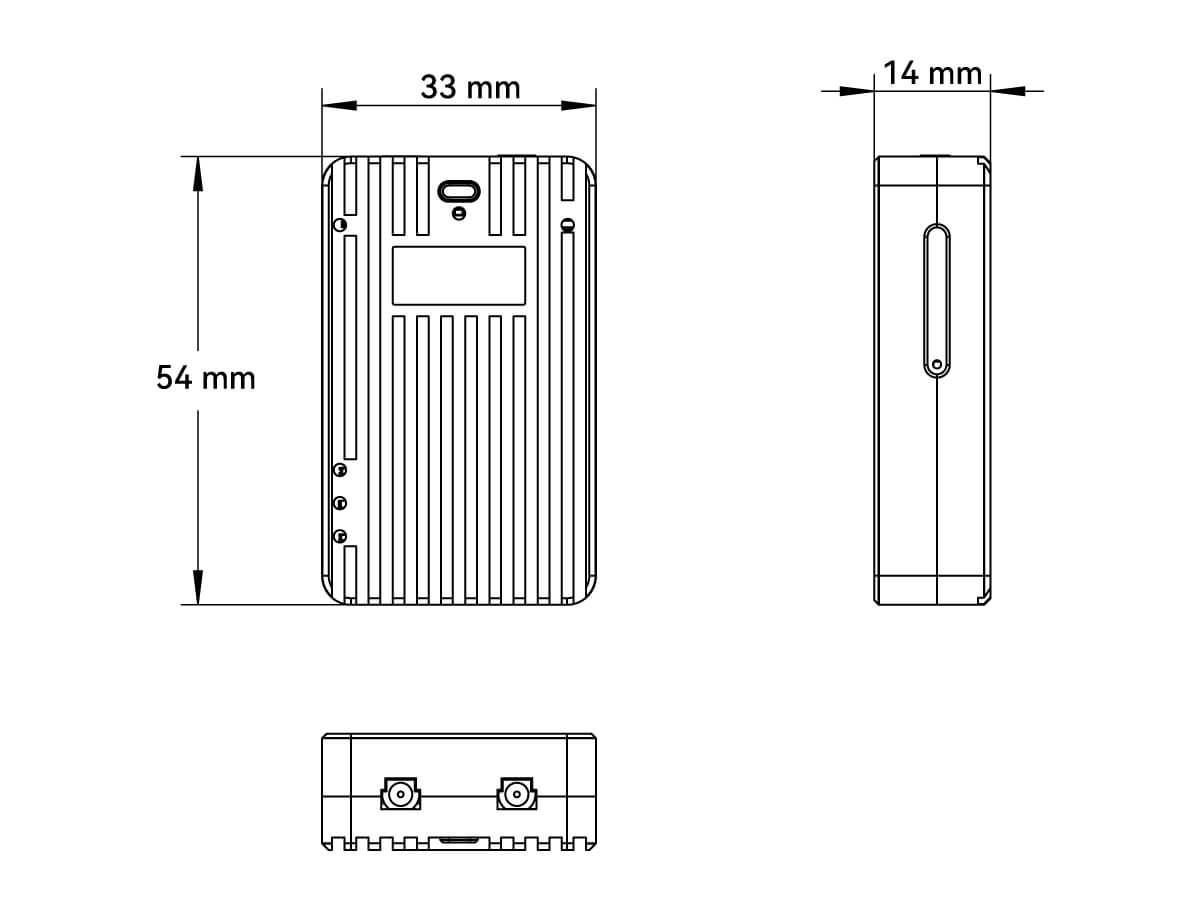

| Appearance Size | |
| Size | 54.5mmX33.5mmX13.5mm |
| Weight | 42g |
