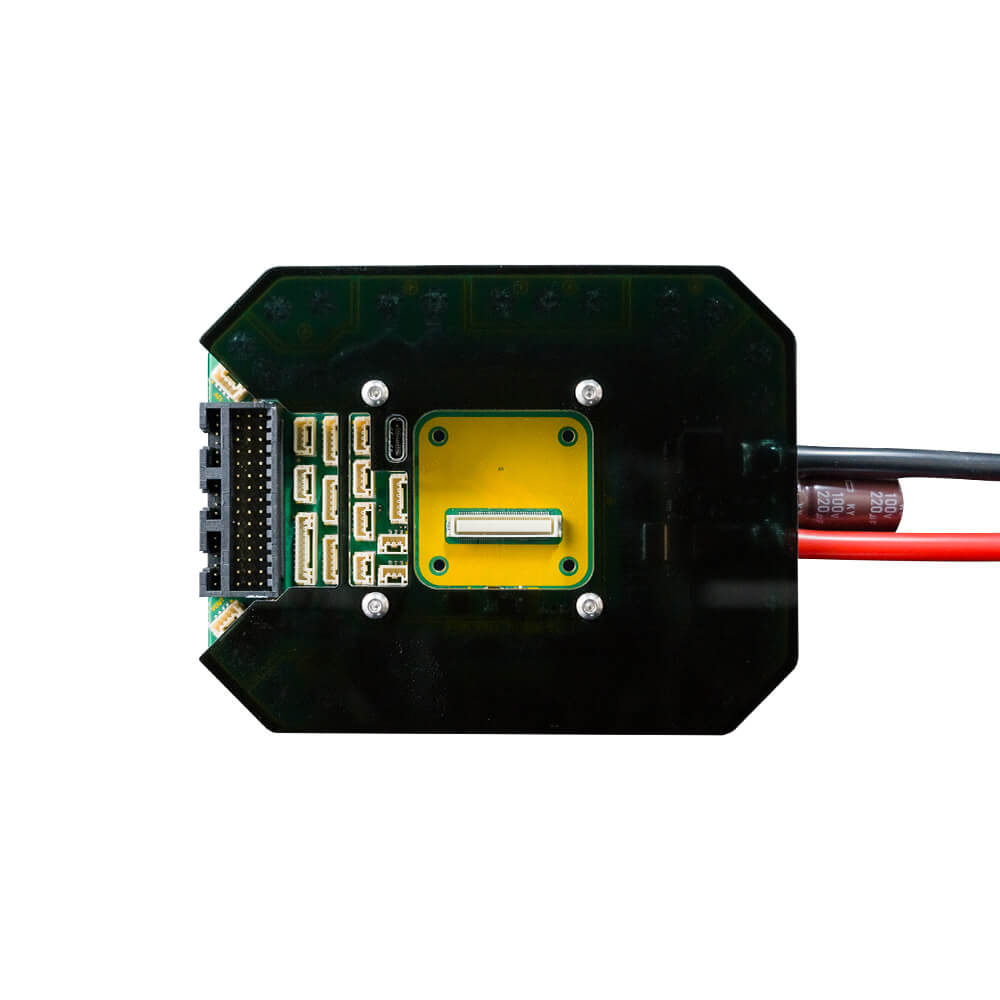

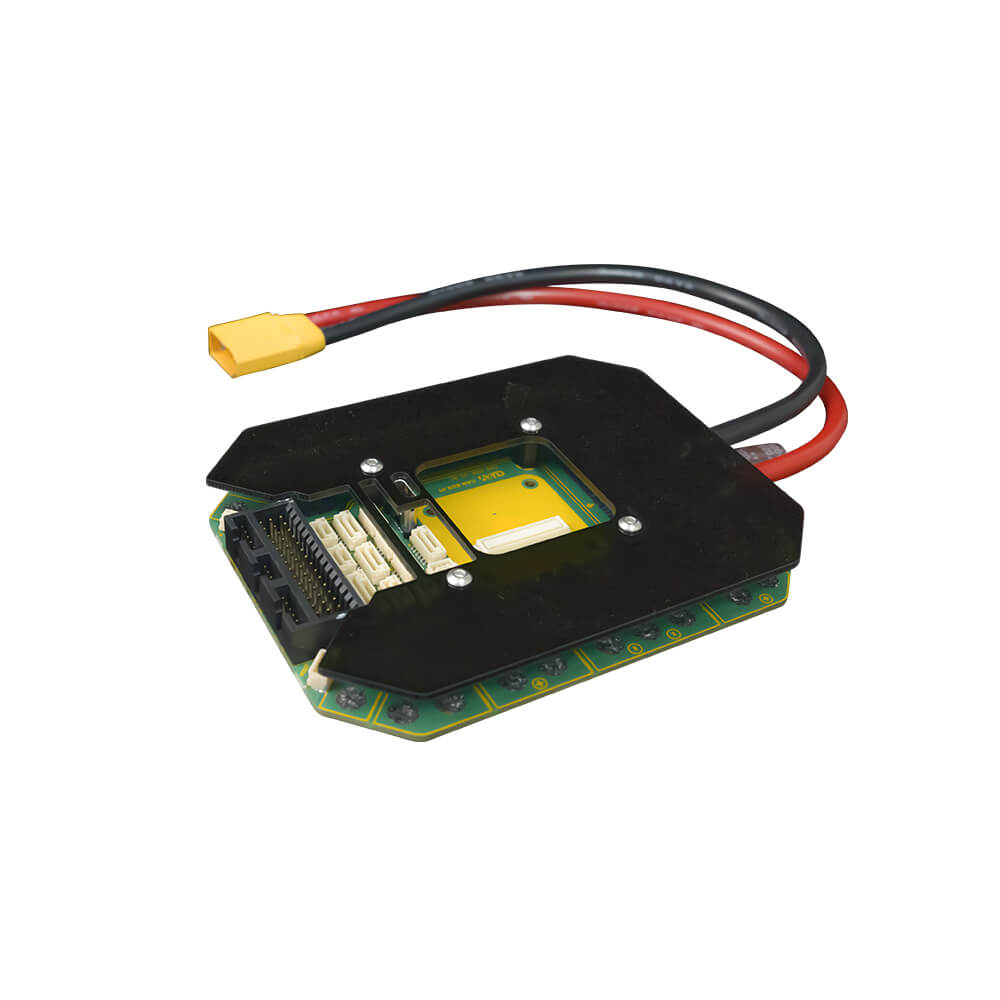

CAN PDB Multifunctional Baseboard
- Support V5+, X7+, X7 Pro CORE Units.
- 0.05V / 0.1A measurement accuracy.
- Supports up to 62V voltage input and 110A current detection.
- Proprietary ITT algorithm.

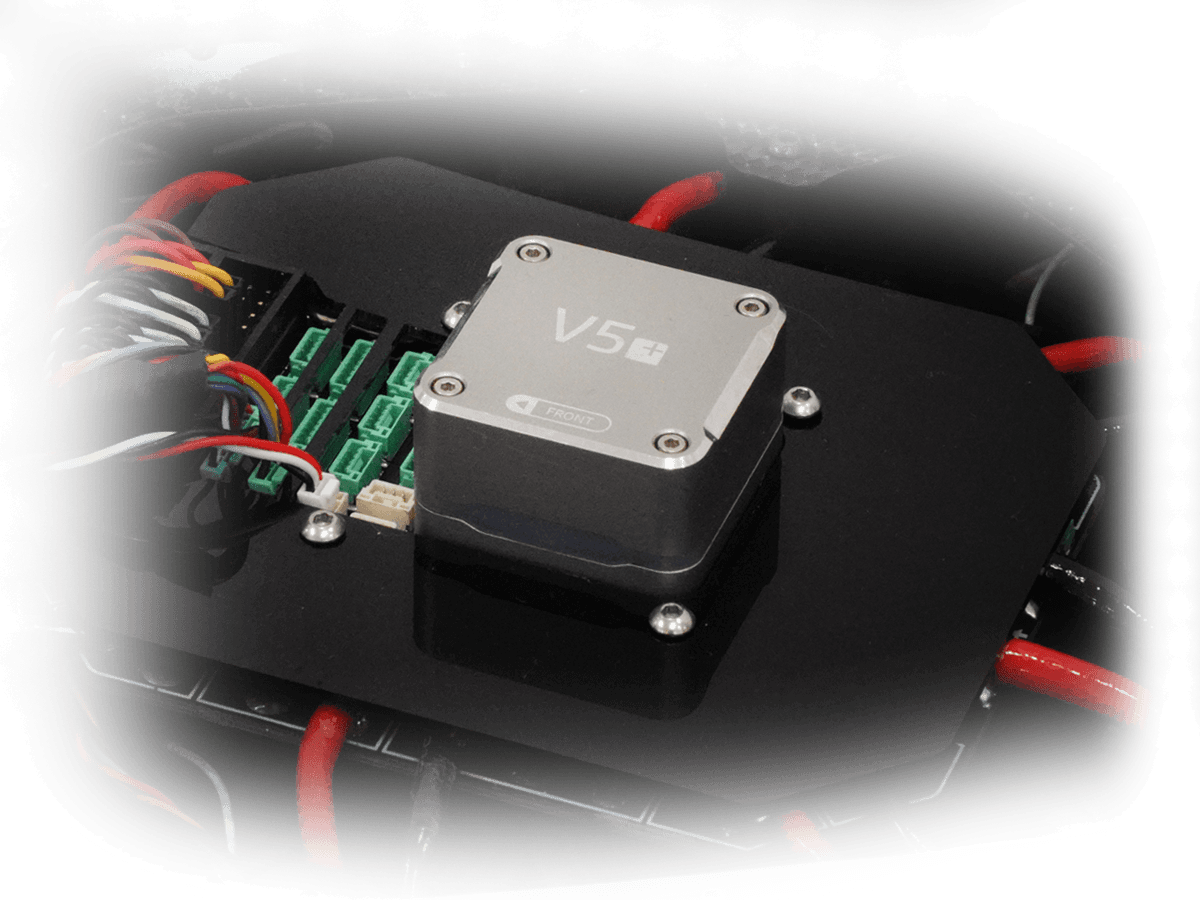

Support V5+, X7+, X7 Pro CORE Units

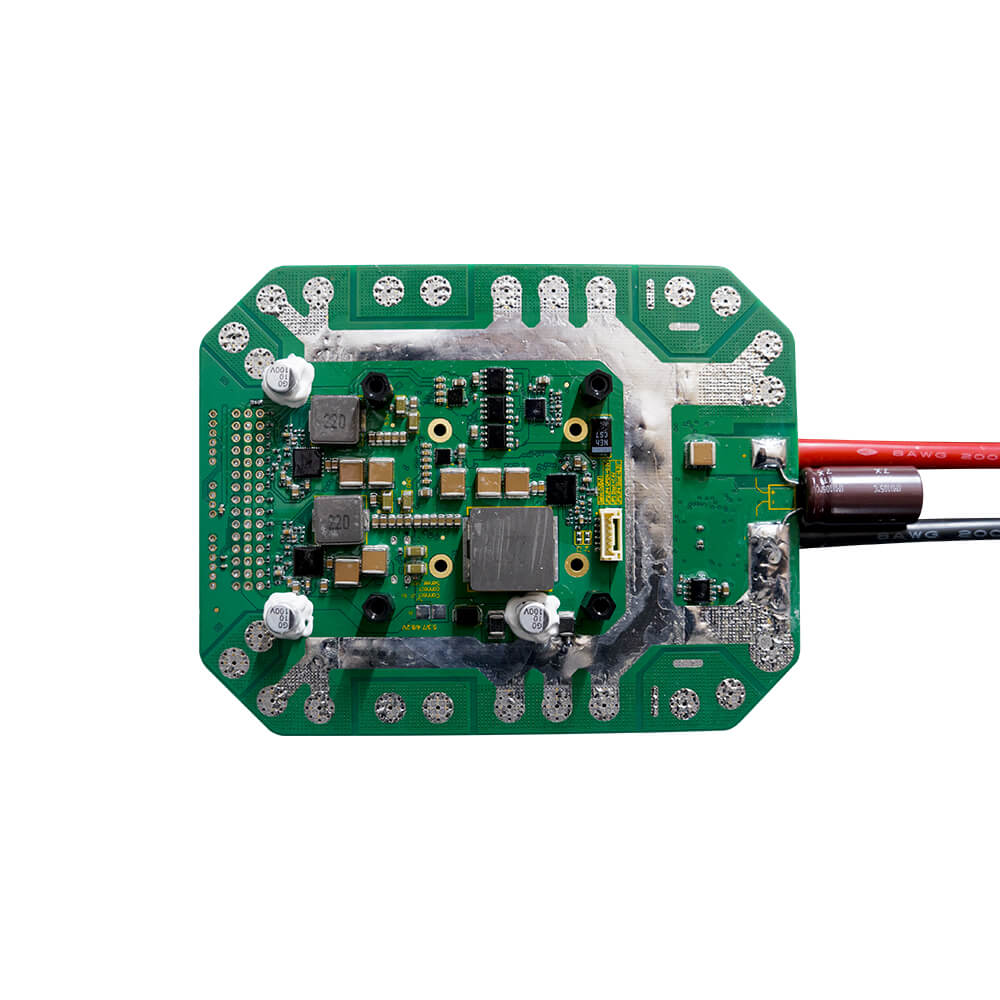

CAN PDB is a multi-functional baseboard of CORE controller, which provides abundant interfaces, integrates the functions of power module and power distribution board, and supports voltage input of 14~60V, and provide continuous working current up to 110A. It adopts self-developed ITT algorithm and has high accuracy power detection of 0.1A and 0.05V. It has 10 power output welding points, and provides a 5V and a 12V/4A stabilized output to provide power for external device. Supports the CORE modules of V5 +, X7+ and X7+ Pro controller.
0.1A 0.05V
Power Accuracy
UBEC Stable Output
12V/4A
VOUT
5V(Default)/7.4V/8.2V(Max 4A Load)
110A
Sustained Current

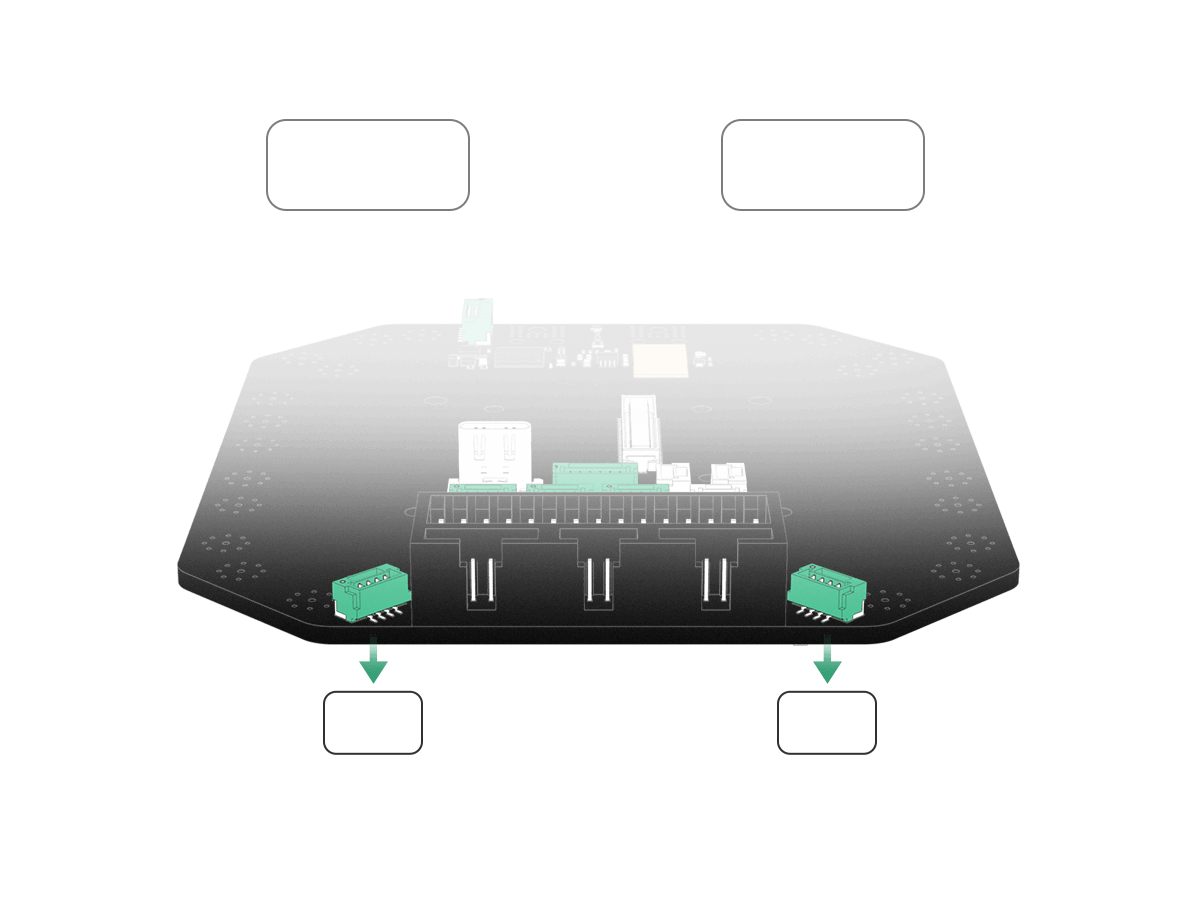

Precise Measurement of Voltage and Current

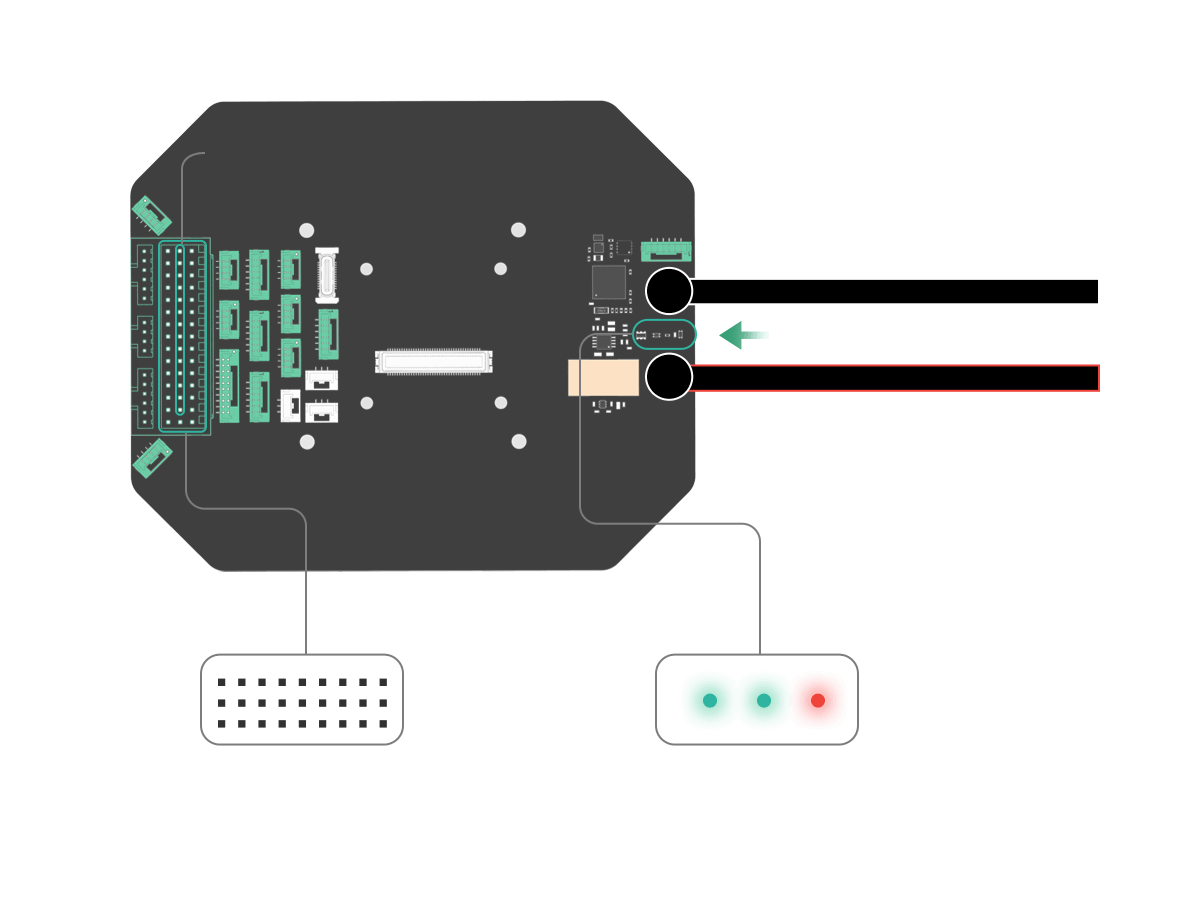

Wide voltage input, intuitive status indication
14V ~ 62V Input
State Display
14 PWM Out
Servo VCC: 5V(Default)/7.4V/8.2V(Max 8A Load)
Specification & Parameters
| CAN PDB Parameter | |
| MCU | STM32F412(32 Bit Arm® Cortex®‑M4, 100MHz, 512KB FLASH, 256KB RAM) |
| Operating Voltage | 14 ~ 62V（4 ~ 15S Lipo) |
| Detection Current Range | 0 ~ 110A |
| Output Power(MAX) | 6000W（last 120s） |
| Stable Output Power(MAX) | 5500W |
| Core | V5+ / X7+ / X7+ Pro CORE |
| Frame Type | Plane/VTOL/Copter/Helicopter/Rover/Sub |
| Controller Firmware | ArduPilot 4.0.0 and above firmware PX4 1.11.0 and above firmware |
| Operating Temperature | -20 ~ 100℃ |
| Interface | |
| V_OUT | 5V(default)/7.4V/8.2V(4A） |
| Servo VCC | 5V(default)/7.4V/8.2V(8A） |
| 12V OUT | 4A(max) |
| USB | 1 |
| UART1 | 5(GPS/UART4/TELEM1/TELEM2/DEBUG) |
| CAN | 2 |
| I2C | 3 |
| SBUS/DSM IN | 1 |
| PPM IN | 1 |
| Servo | 14 |
| ADC3.3 | 1 |
| ADC6.6 | 1 |
| SBUS Outs | 1(This interface is invalid when using X7+/X7+pro core) |
| RSSI | 3.3V(Analog input) |
| DSU7 | 1 |
| Size | 12.8cm (length) * 10.0cm (width)* 1.2 cm (height) |
| Weight | 200g (including cable) |
| Wire Length | 30cm |

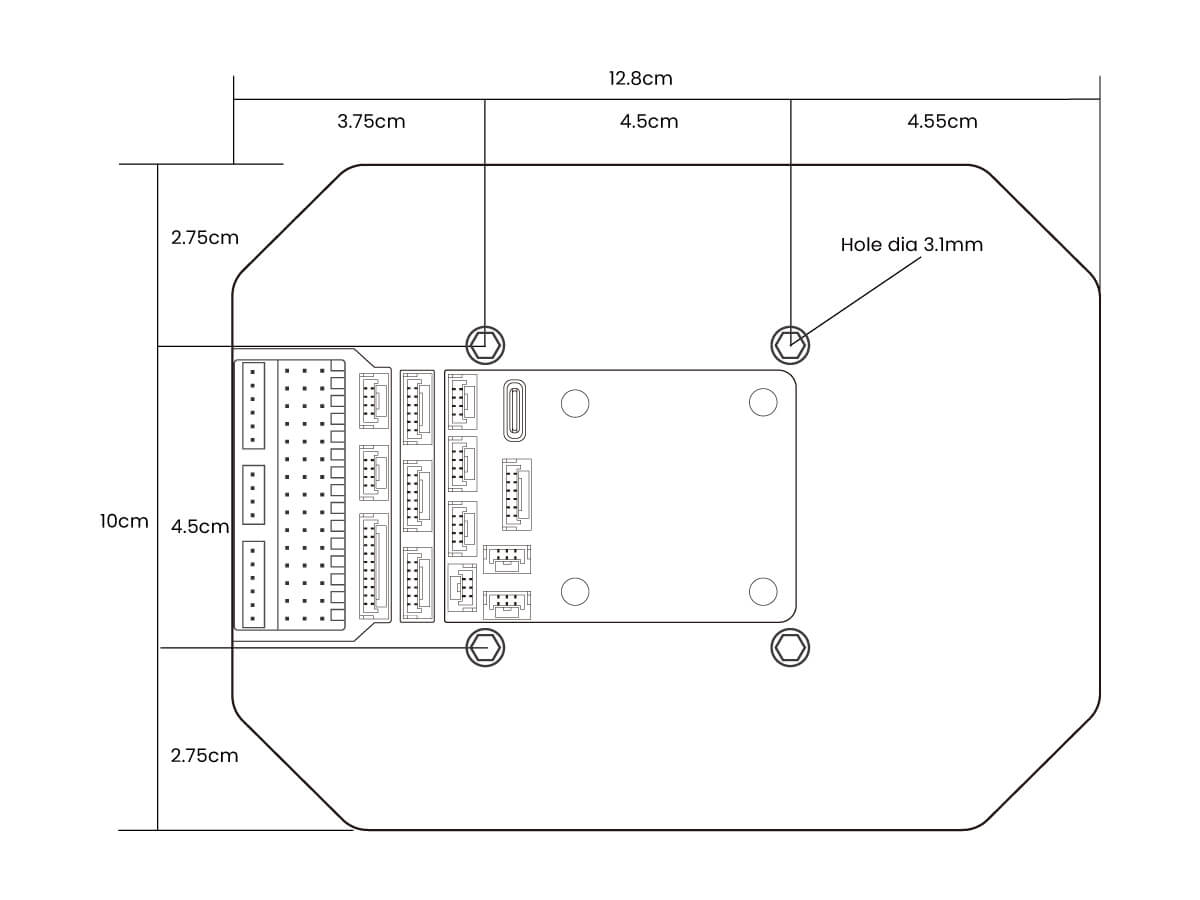

Dimensions chart

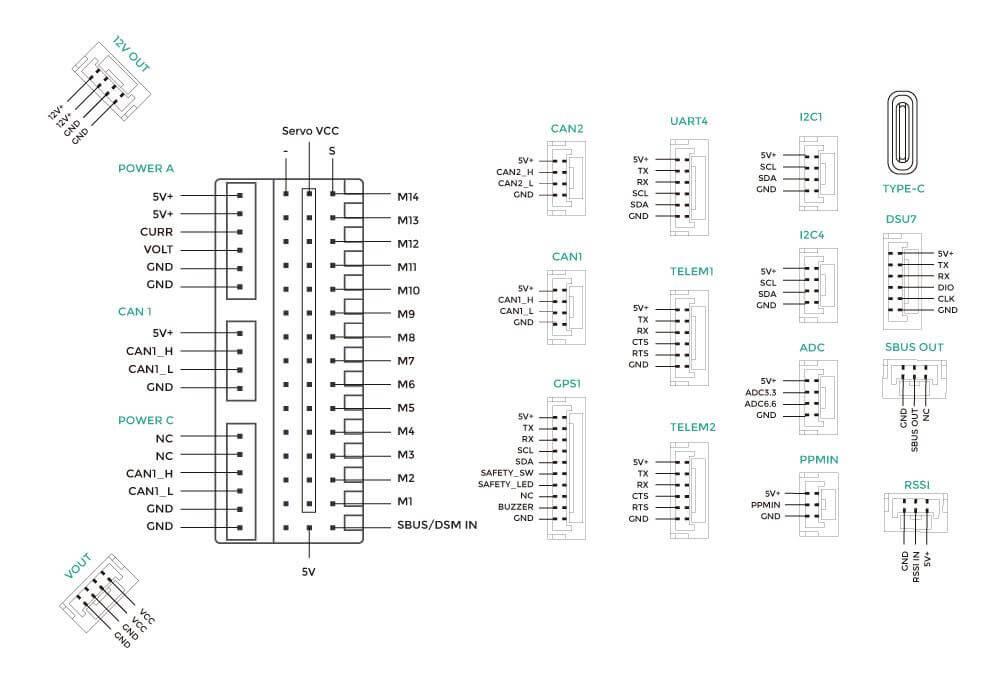

Pinouts
