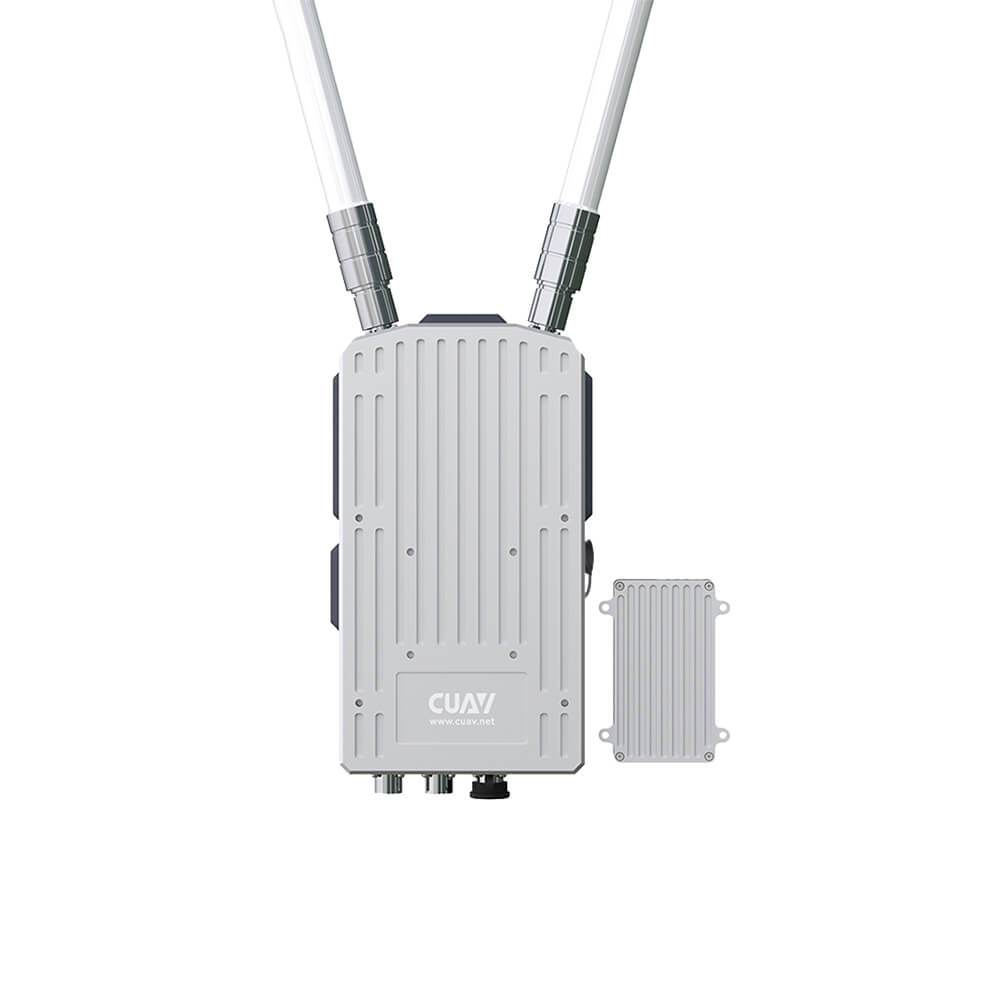

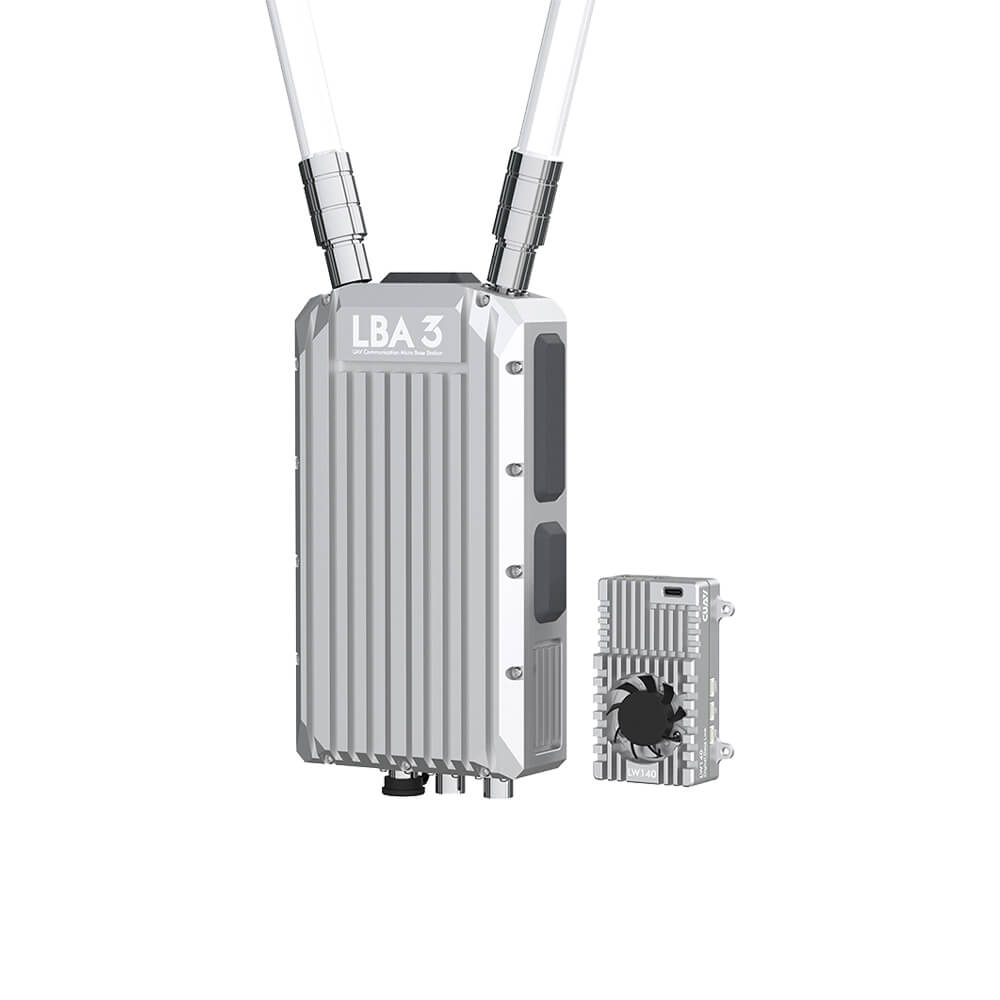

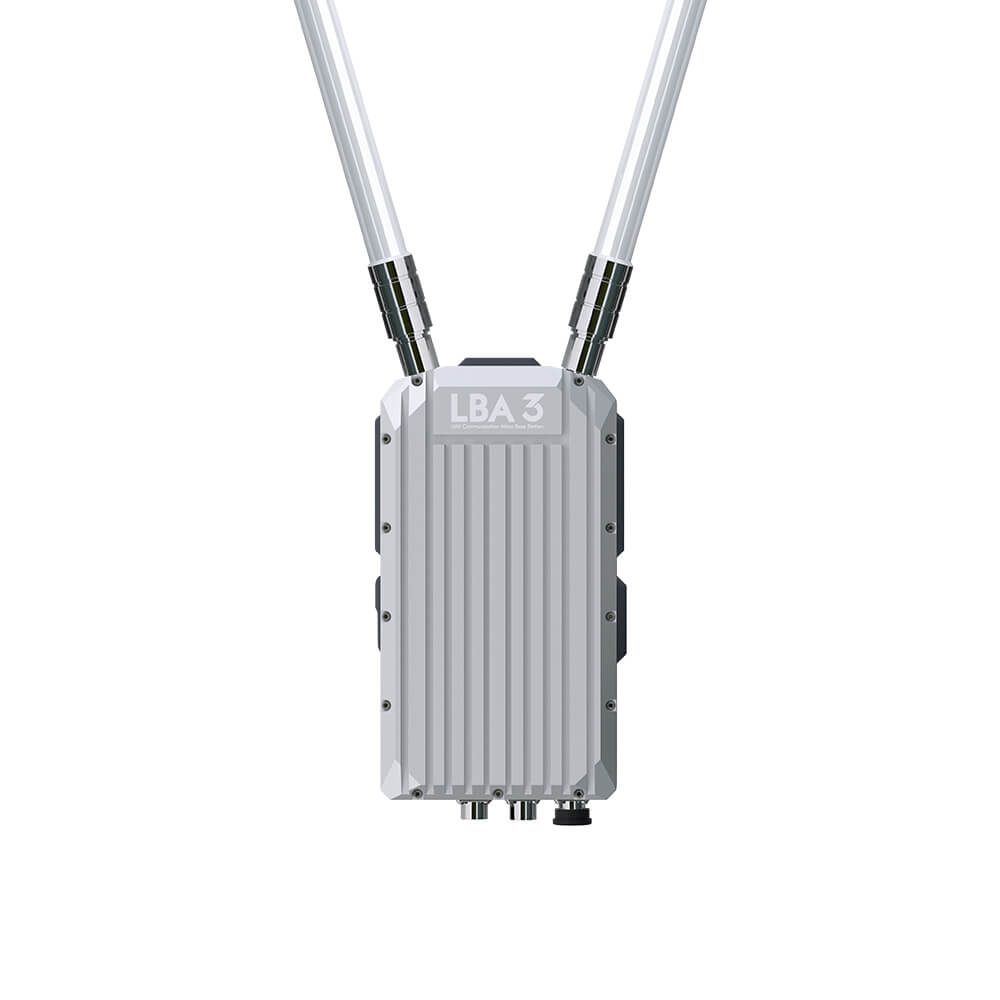

LBA 3 Communication Micro BaseStation

4G and Wired Network Hybrid Communication.
30Mbps High Bandwidth.
IP67 Industrial-grade Protection.

Ultra-long distance communication | One-stop coverage

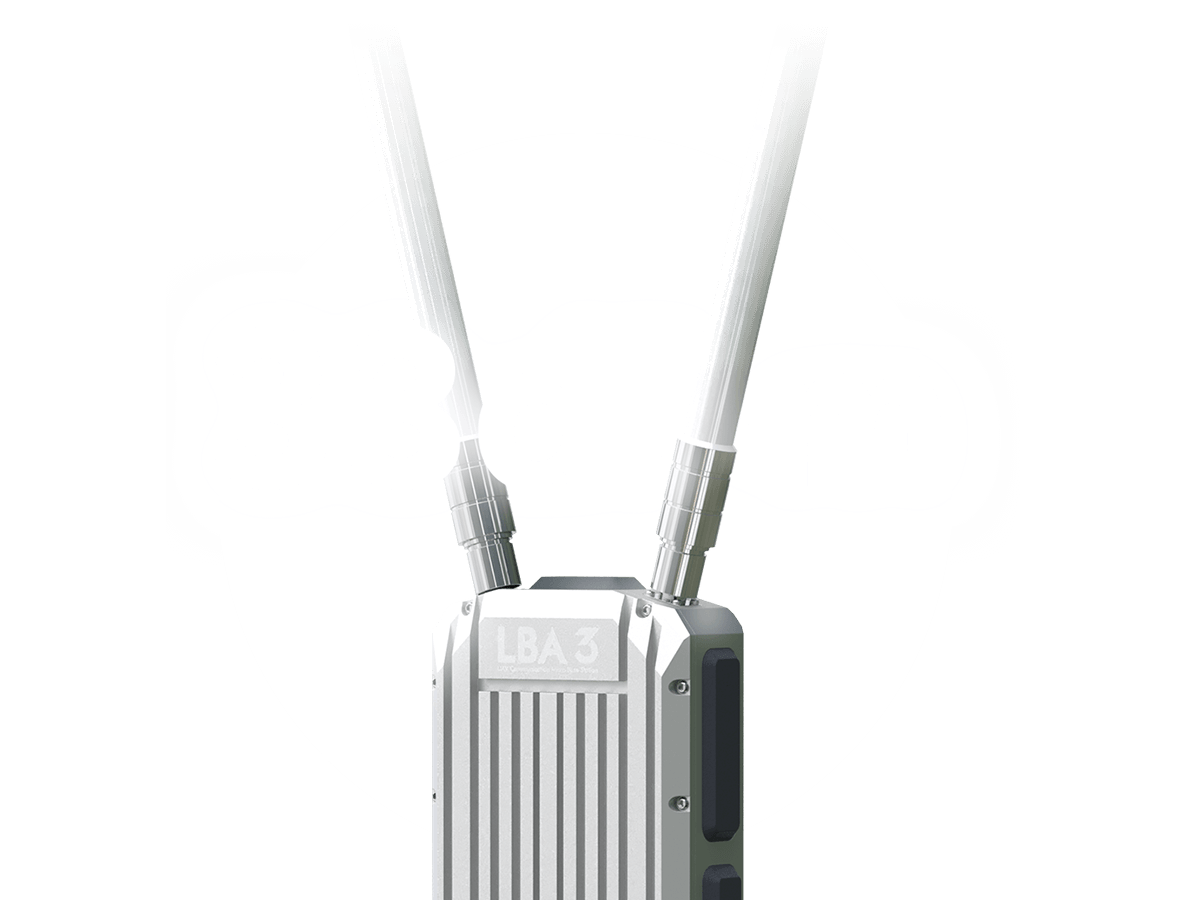

Developed using LTE communication technology with 33dBm RF power, it features ultra-long range communication coverage.

High-bandwidth communication, supports star-shaped networking, and AES encryption for security protection.

The LBA 3 achieves bidirectional synchronous data transmission, enhancing data transfer speed while maintaining stability. It supports up to 30Mbps shared bandwidth and offers faster access speeds. By employing AES encryption algorithm, it demonstrates strong resistance against differential and linear cryptanalysis, ensuring secure communication.

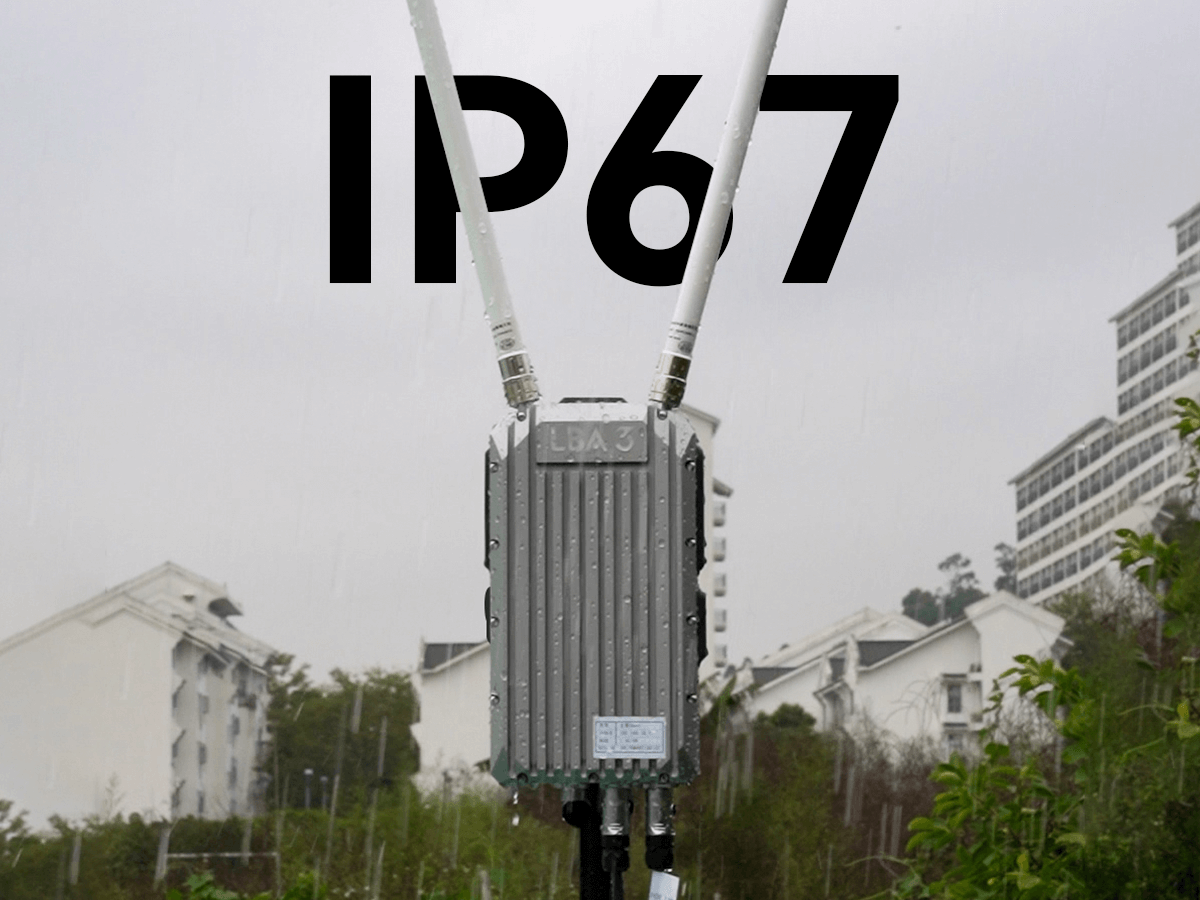

Industrial Protection Design to Meet Outdoor Operations

The LBA 3 micro base station adopts a dustproof, waterproof and corrosion-resistant design, which can be placed outdoors for a long time without fear of wind and sun. It perfectly solves the problem of repeated installation in high-frequency and automated application scenarios, reduces repetitive work, and improves work efficiency

LBA 3 Base Station End Specification

Frequency Band	1.4G Version: 1420MHz ~ 1448MHz. 800M Version: 806MHz ~ 826MHz.
Transmit Power	33dBm (Typical value)
Bandwidth	Default: 20Mbps (10MHz). Max 30Mbps (20MHz).
Encryption	AES265
Modulation	QPSK, 16QAM, 64QAM
Transmission Delay	≤ 150ms
Operating Voltage	20V ~ 60V (Standard power consumption: 24V 1.5A) POE module supports 100V ~ 240V Utility Power
Operating Temperature	-15℃ ~ 65℃
Dimensions	220mm × 120mm × 50mm
Weight	1.65kg
IP Rating	IP67

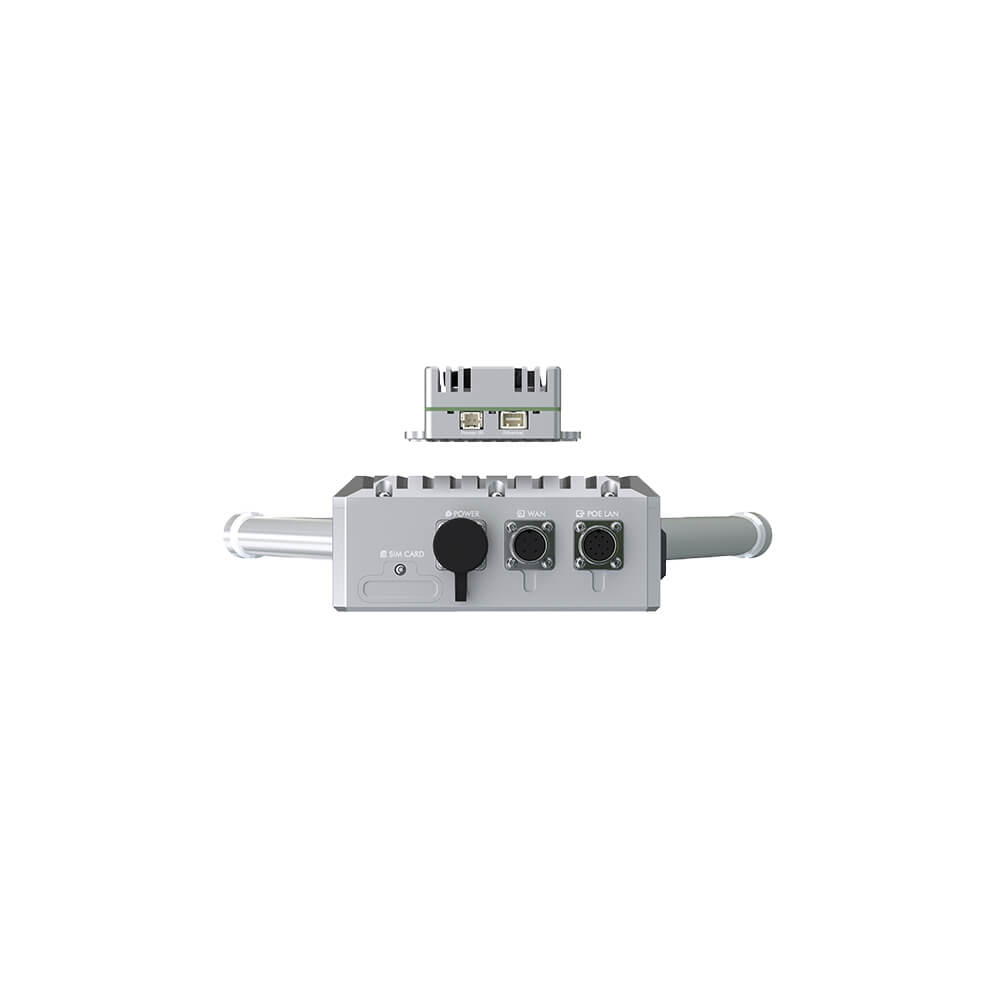

Interfaces	Antenna Port × 2. Power Port (SF12 to XT60) × 1. POE Network Port (SF12 to RJ45) × 1. LAN Network Port (SF12 to RJ45) × 1. AAT Port (SF12) × 1.

LBA 3 Sky Unit Specification

Frequency Band	1.4G Version: 1420MHz ~ 1448MHz. 800M Version: 806MHz ~ 826MHz.
Transmit Power	33dBm (Typical value)
Bandwidth	Default: 20Mbps (10MHz). Max 30Mbps (20MHz).
Encryption	AES265
Modulation	QPSK, 16QAM, 64QAM
Transmission Delay	≤ 150ms
Operating Voltage	20V ~ 60V (Standard power consumption: 24V 1A)
Operating Temperature	-15℃ ~ 65℃
Dimensions	90mm × 65mm × 26.4mm
Weight	155g
IP Rating	IP20
Interfaces	Antenna (MCX-KE) × 2. POWER Connector (5023520200 to XT30) × 1. RJ45 Connector (5025850470) × 1. UART × 1. USB × 1.

AG Gateway Specification

WiFi Frequency Band	5.8GHz
Transmit Power	20dBm
SSID	CUAV_AG_XXXX
WiFi Password	12345678
Operating Voltage	4.8V ~ 5.2V
Operating Temperature	-15℃ ~ 65℃
Interfaces	LAN × 3. UART × 2. USB × 1.

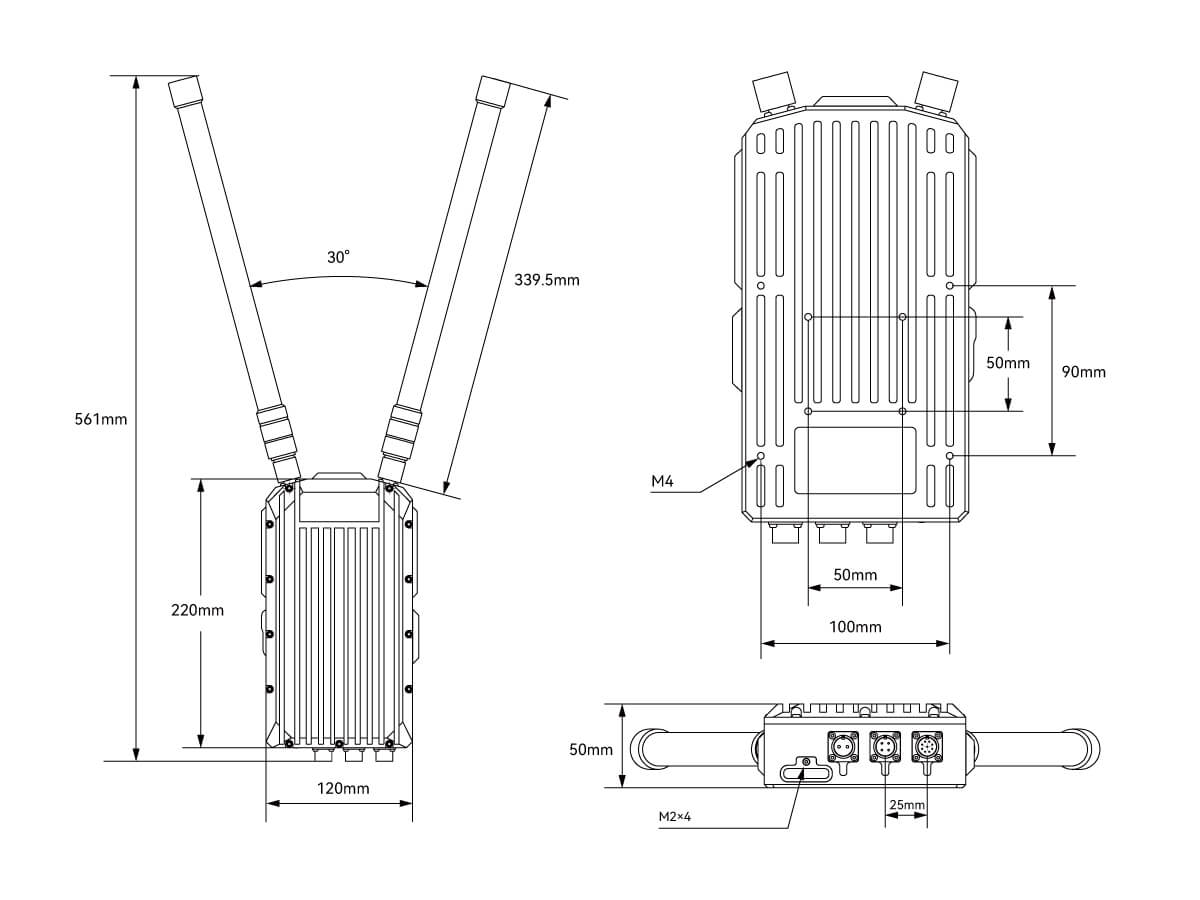

LBA 3 Base Station End Dimensions chart

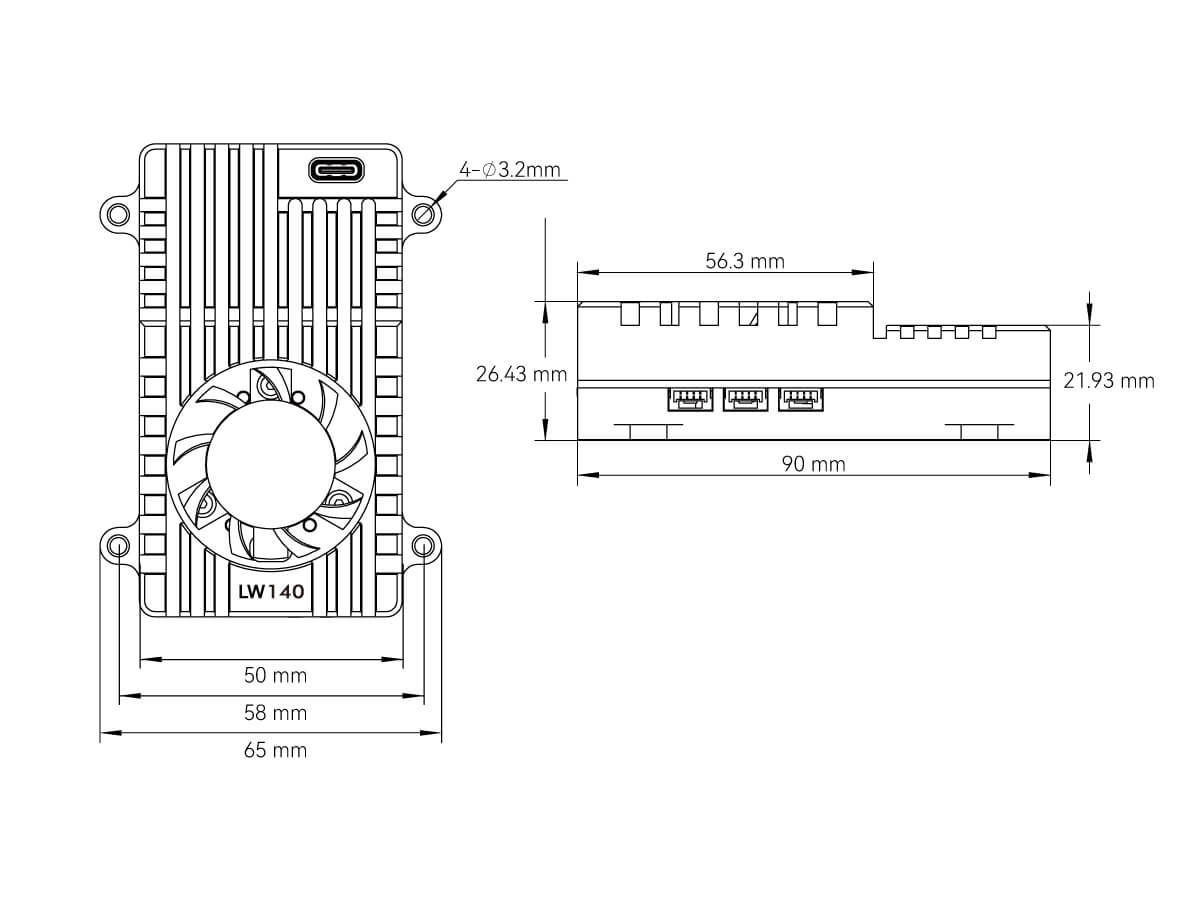

LBA 3 Sky Unit Dimensions chart
