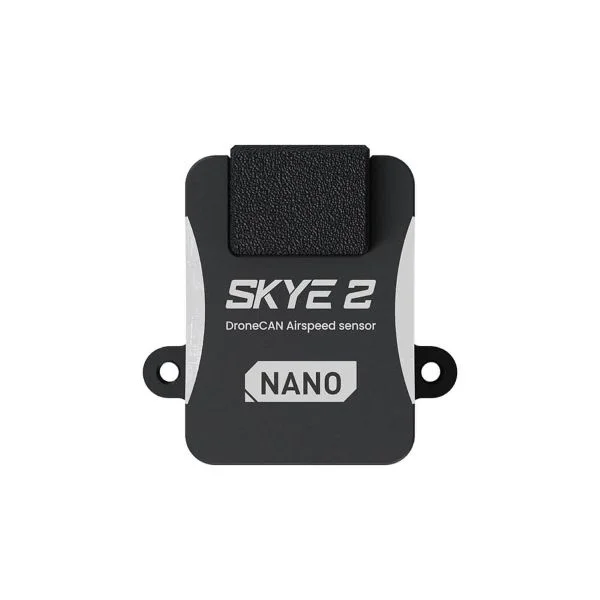

SKYE 2 Nano DroneCAN Airspeed

Dual Wafer Technology DLVR Airspeed Sensor.
Airspeed measurement capability up to 226.8 km/h.
Self-developed M4C Software Architecture.
Aerospace-grade aluminum alloy casing.
Supports DroneCAN protocol.

UAV DroneCAN Airspeed. 无人机 DroneCAN 空速计. SKYE 2 Nano

Multi-scenario Application | 226.8km/h Airspeed Measurement

Airspeed measurement up to 226.8 km/h can meet the operational requirements of the vast majority of UAV application scenarios.

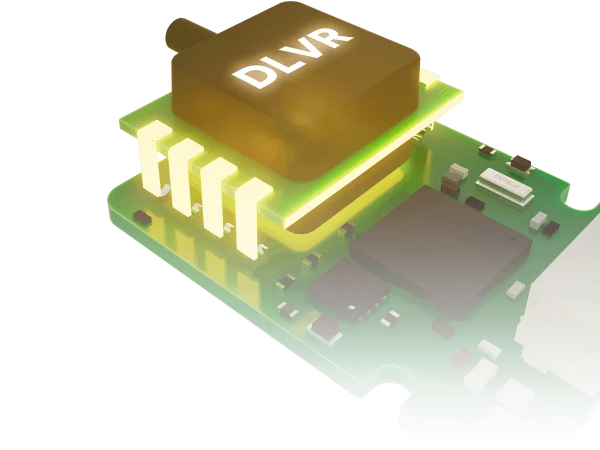

Precise Measurement | DLVR Airspeed Sensor

The DLVR airspeed sensor, equipped with dual-wafer technology, features high precision and superior linearity. It enables sensitive environmental awareness and achieves high-precision data output, while enhancing the operational stability of the equipment.

Core Technology Empowerment | M4C Software Architecture

Adopting the M4C software architecture developed by CUAV Leixun Innovation enables more efficient and flexible customized development and upgrades.

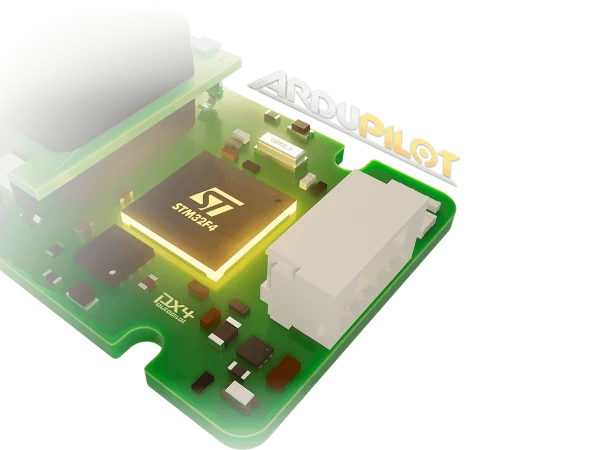

STM32F4 Processor | DroneCAN Protocol

The SKYE 2 Nano Airspeed Sensor is equipped with a built-in STM32F4 processor, delivering enhanced data processing and optimization capabilities. Additionally, it utilizes the DroneCAN communication protocol and supports both ArduPilot and PX4 platforms, enabling a wider range of applications.

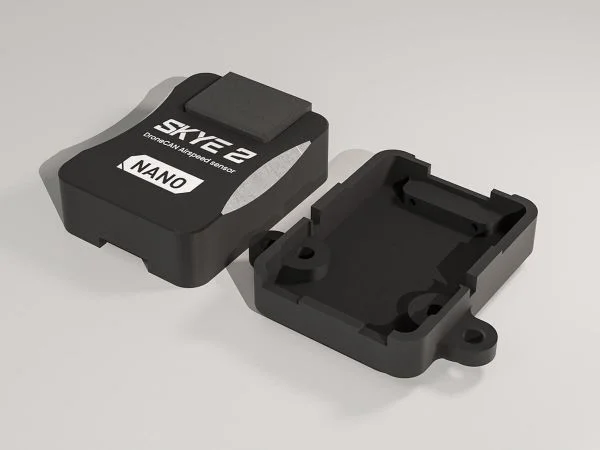

Sturdy and Reliable | Aviation Aluminum Alloy Casing

Featuring a high-hardness, corrosion-resistant aviation aluminum alloy casing, robust and reliable, it effortlessly meets the application requirements of diverse and complex environments.

Specification

Sensor	DLVR-L10D
Processor	STM32F412 32bit Arm® Cortex®-M4 100MHz 512KB Flash 256KB RAM
Airspeed Range	0km/h ~ 226.8km/h
Pressure Rang	±10inH2O
Communication Protocol	DroneCAN
Data Rate	50Hz
Firmware	CUAV Self-Developed Firmware - M4C
Support Controller	CUAV, Pixhawk etc.
Support Firmware	Ardupilot, PX4
Operating Voltage	4.75V ~ 5.3V
Operating Temperature	-20℃ ~ 85℃
Weight	15g

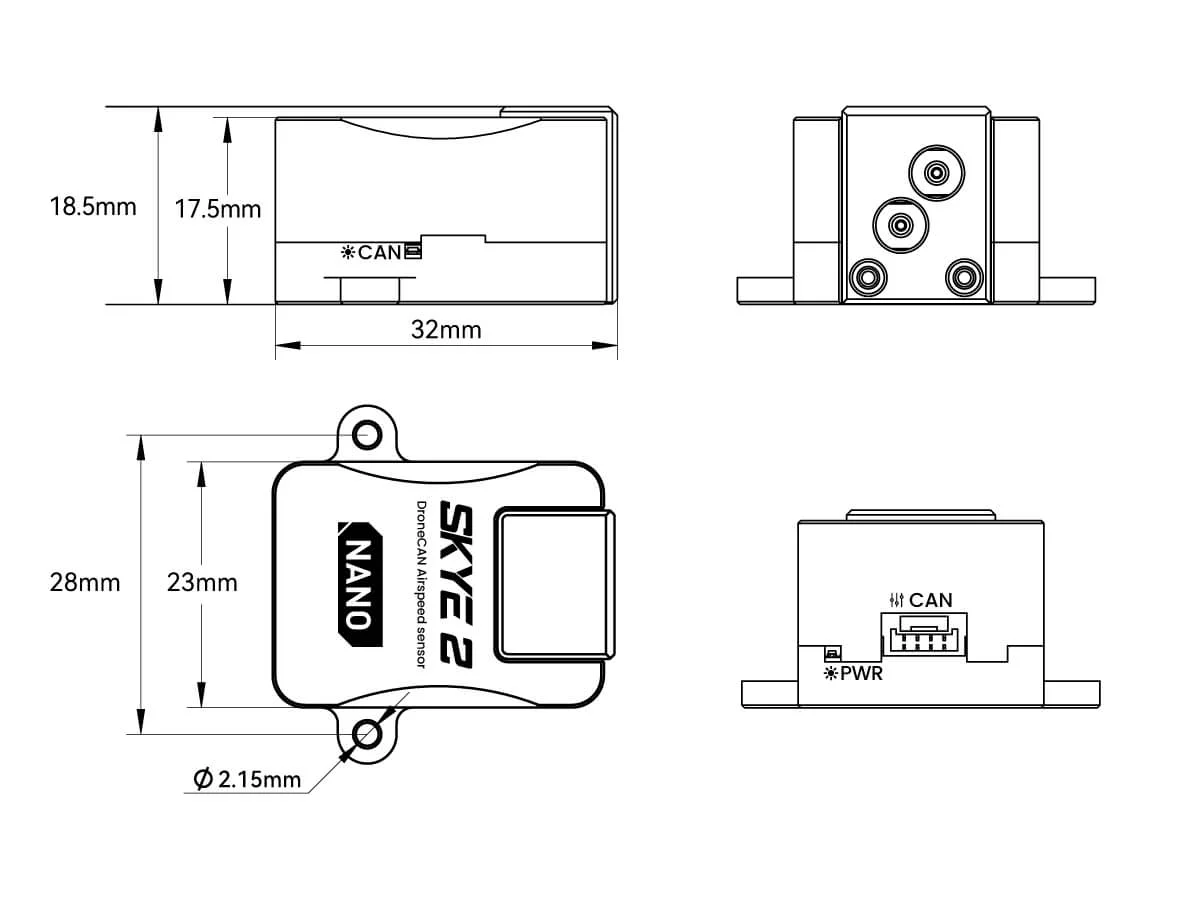

Dimensions chart
