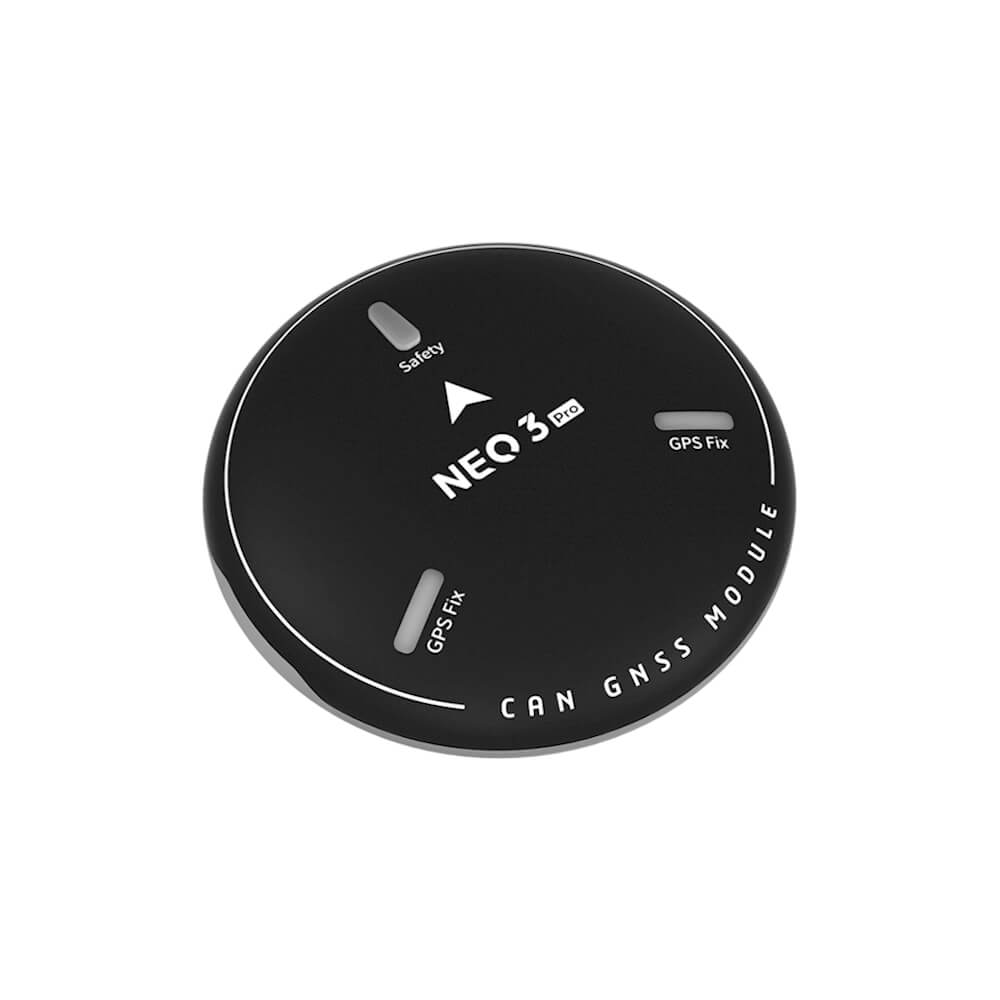

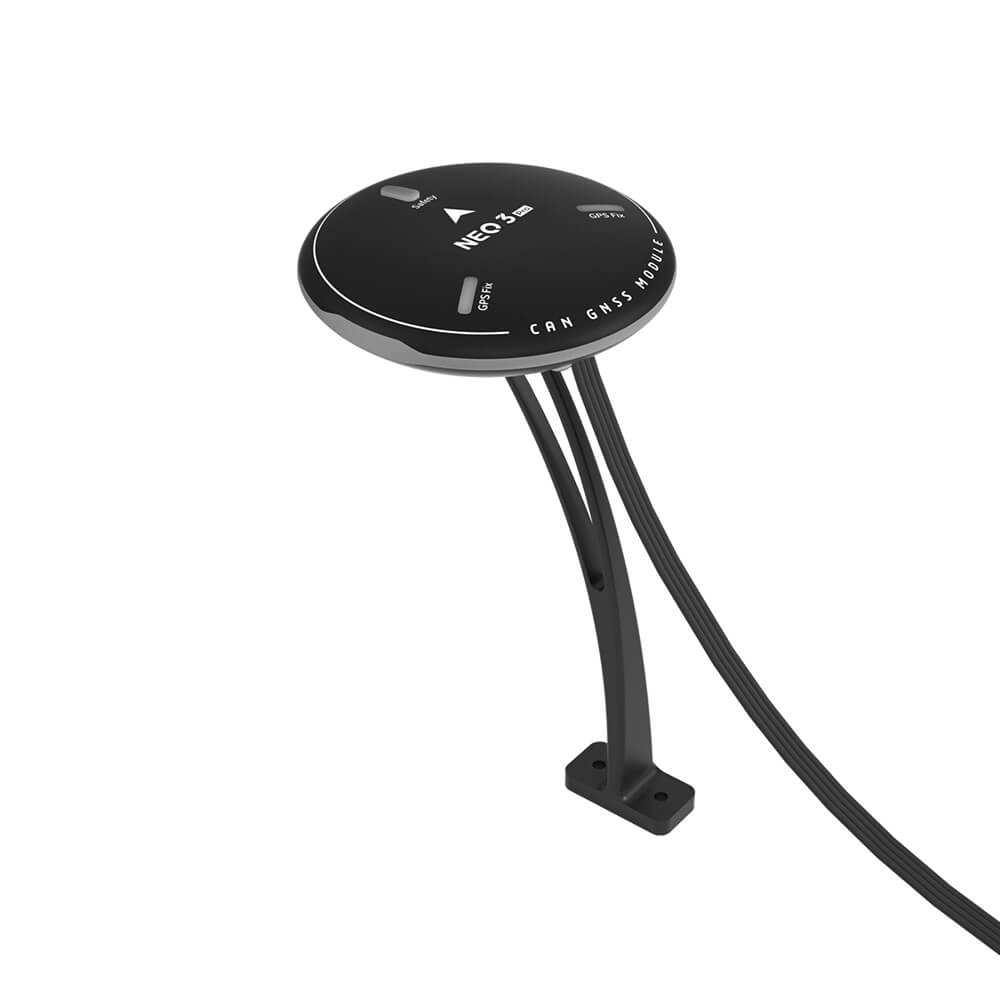

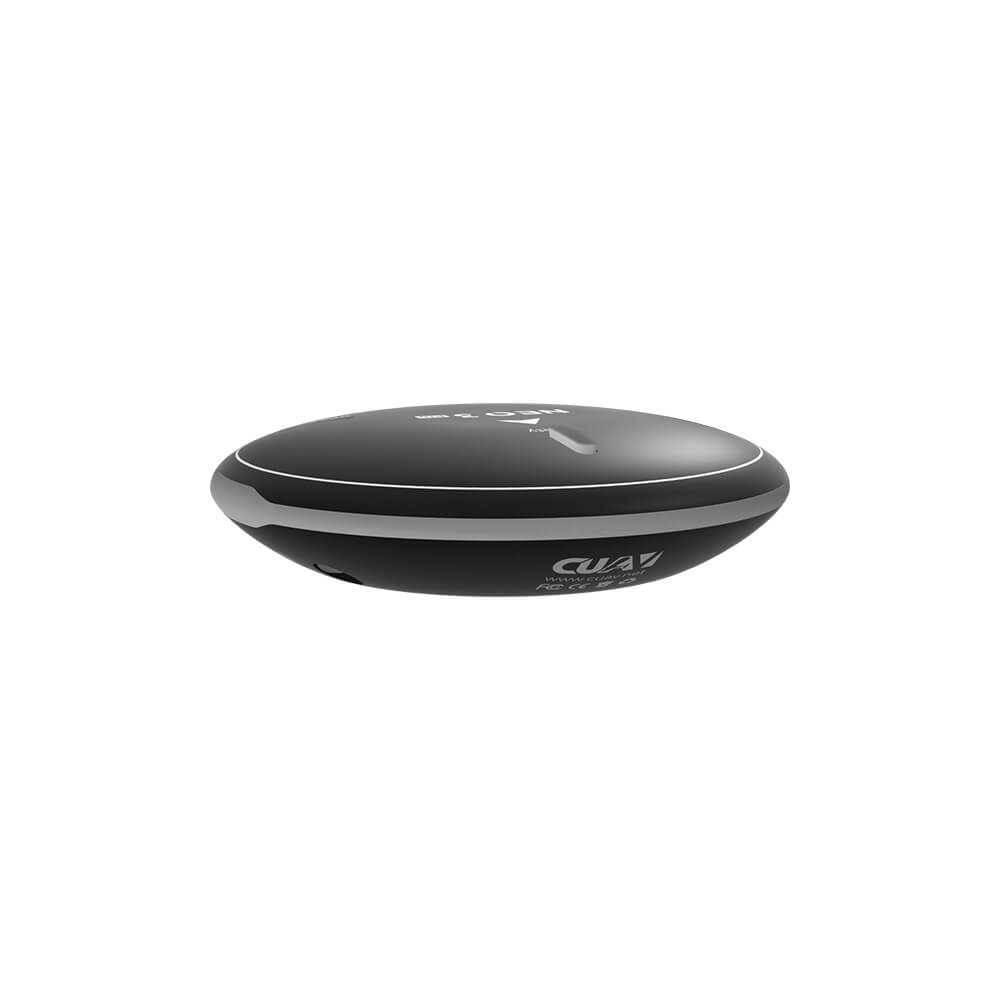

NEO 3 Pro GNSS UAV Module
NEO continues the hardware design of NEO V2, upgrade the GNSS module to Ublox NEO M9N, supports Beidou, Galileo, Glonas and GPS receive at the same time, and the horizontal positioning accuracy is up to 0.7M. Integrated with safety switch, buzzer, RGB light.
Features
Buzzer prompt
safety switch
CAN Bus
MS5611 Barometer
RGB Status Light
RM3100 Industrial Compass

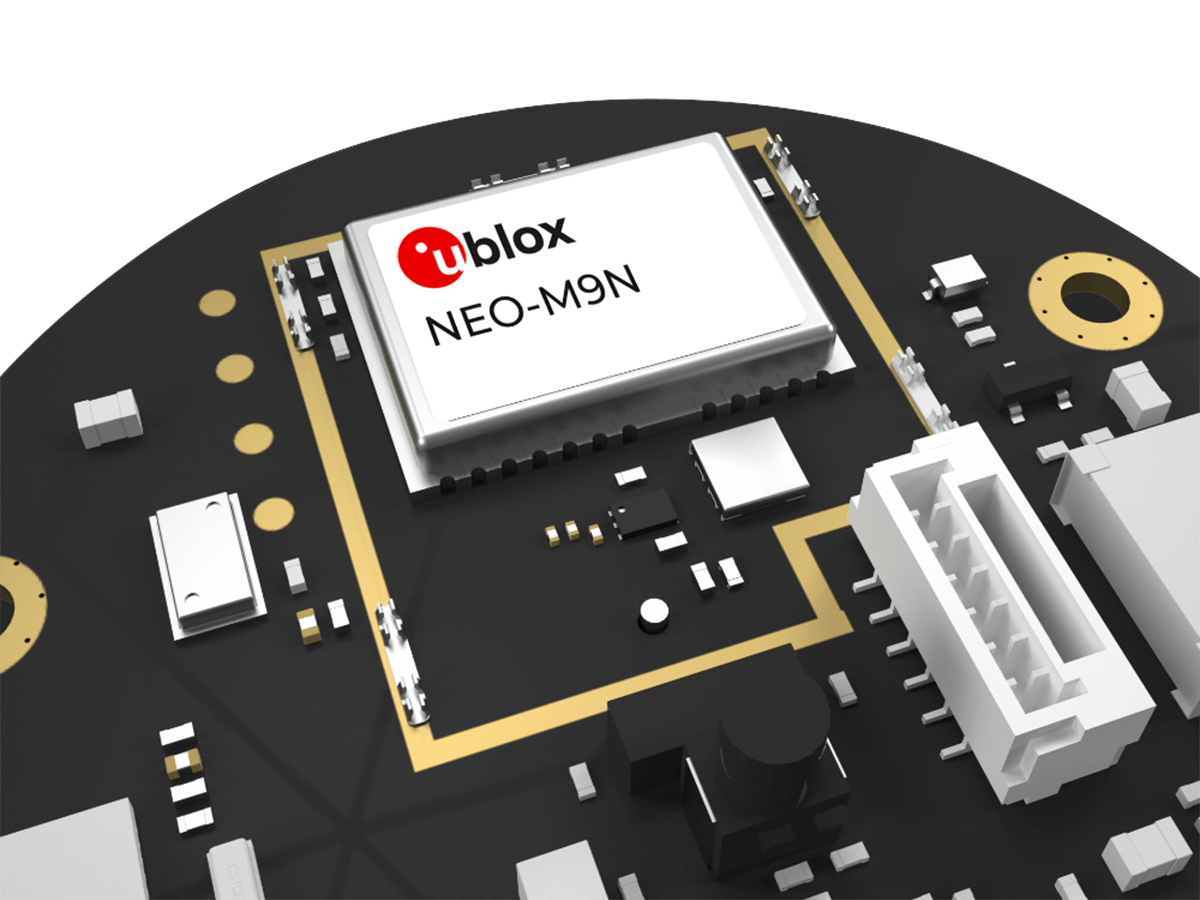

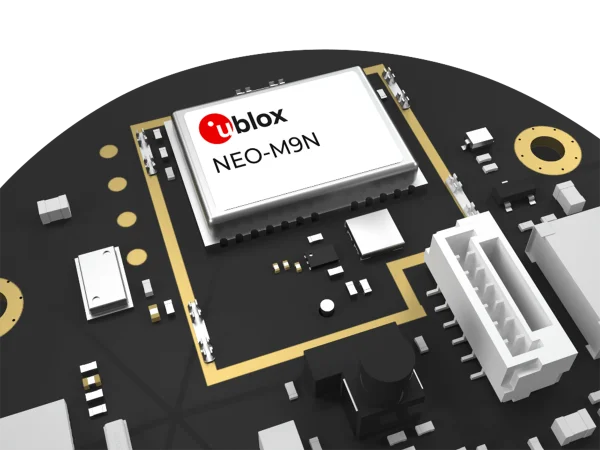

Ublox M9N Satellite receiver
New generation satellite receiver Ublox M9N，The actual measurement can reach a maximum accuracy of 0.7m.

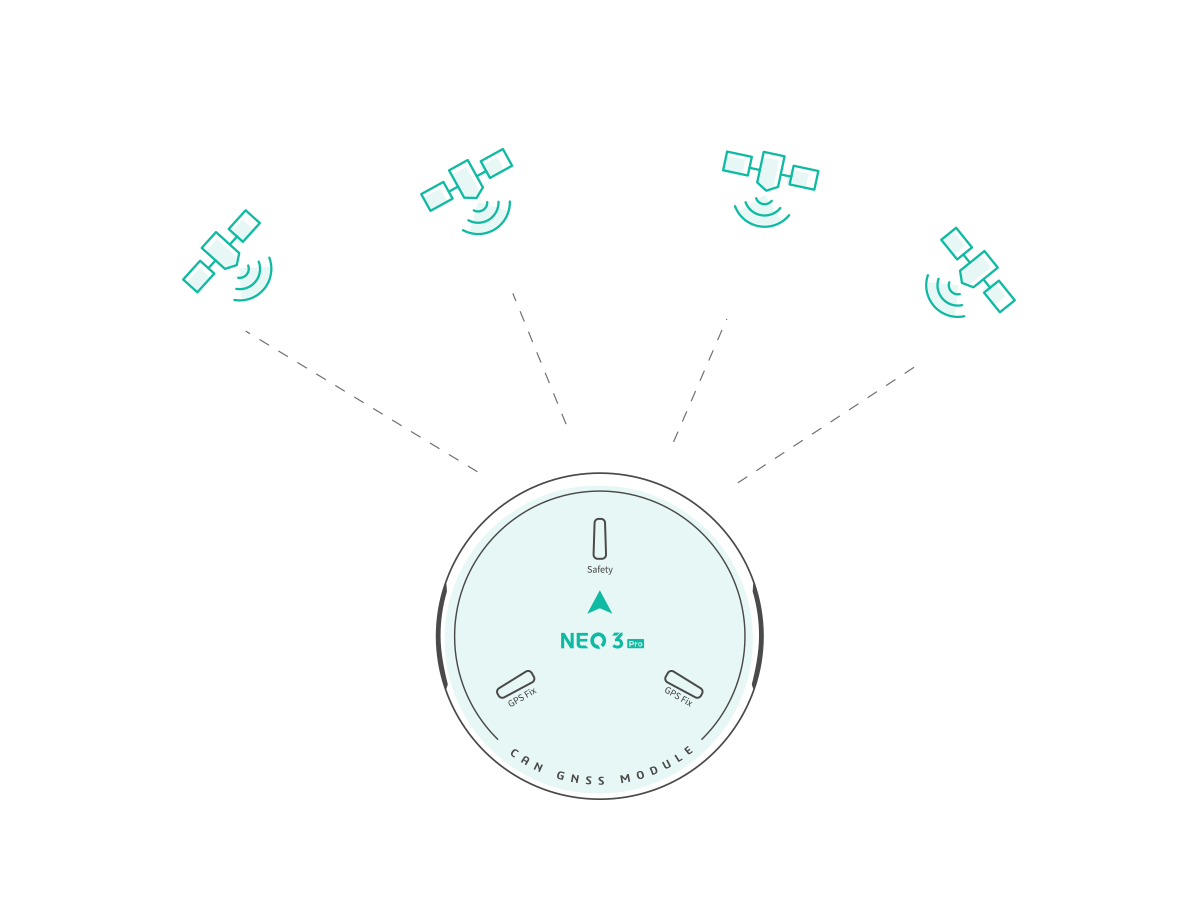

Simultaneous reception by the four satellite systems
Supports simultaneous reception of Beidou, Galileo, Glonas, and GPS four satellite systems
High-performance processing unit STM32F412

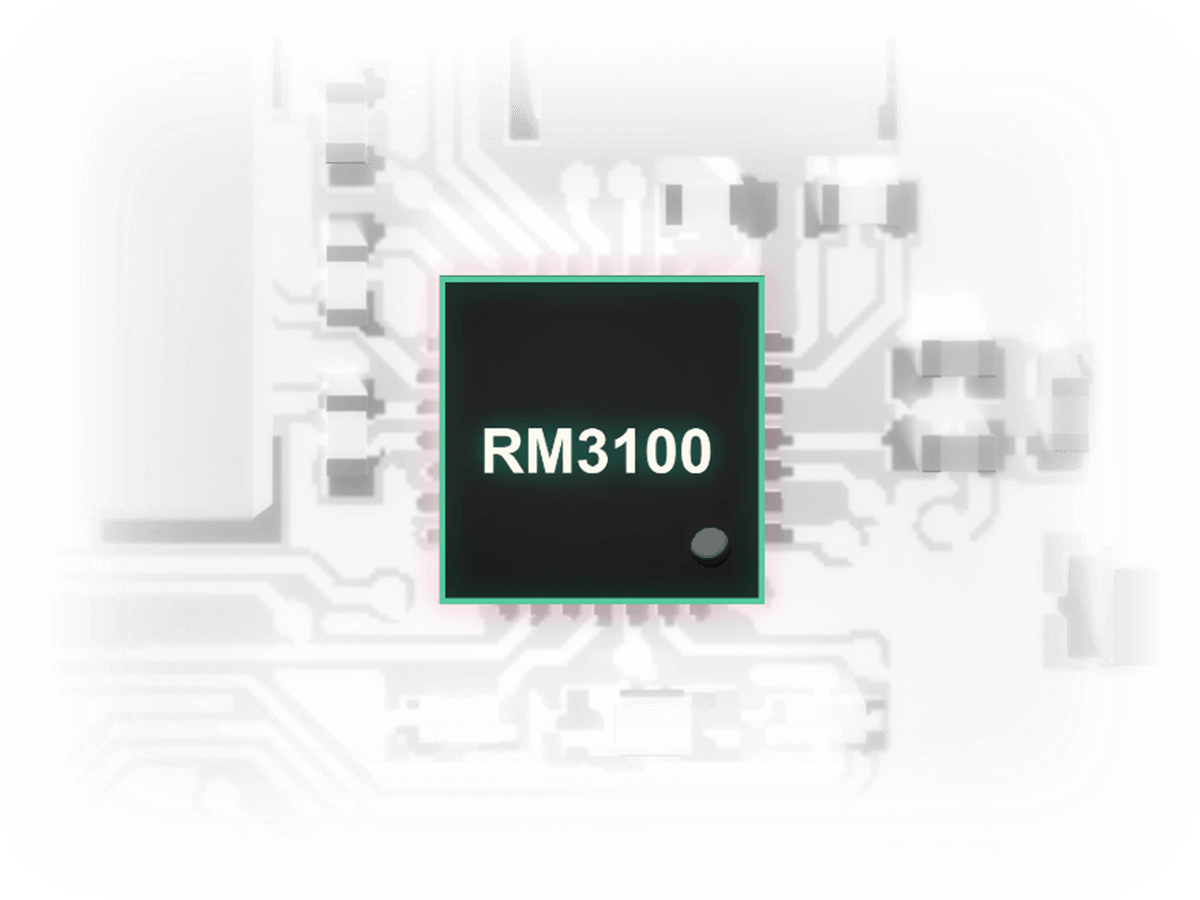

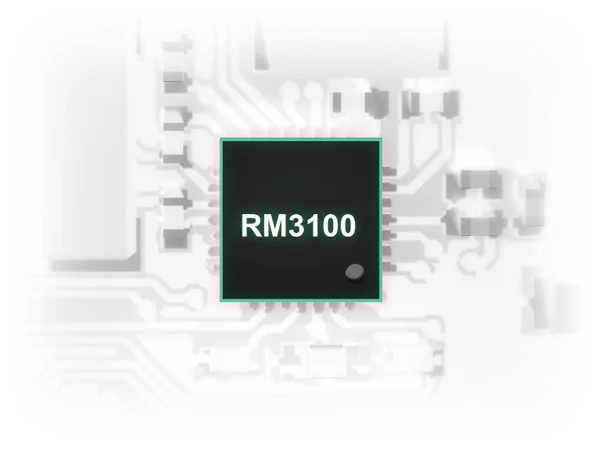

RM3100 industrial sensor
Using RM3100 industrial grade sensor, has better anti-interference performance
CROCOMM custom antenna
Special four-star high gain antenna
Built-in high-precision barometer
Built-in MS5611 high-precision barometer to meet the needs of different application scenarios

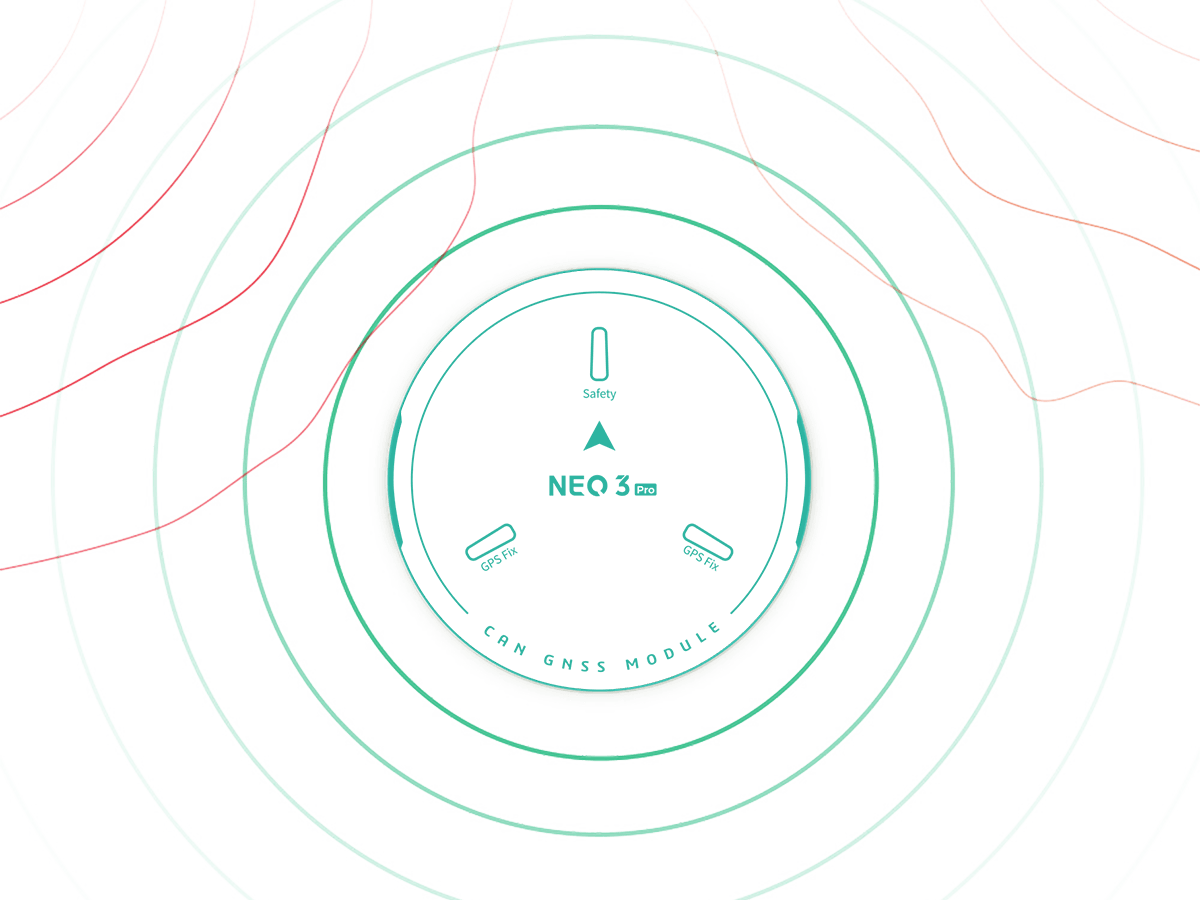

Triple filter design
NEO 3 Pro adopts SAW+LNA+SAW triple filter design, effectively avoiding the influence of remote control, data transmission, 4G signal on GPS positioning reception
Open source program, support custom program
NEO 3 Pro Specifications
| Processor | STM32F412 |
| Compass | RM3100 |
| Barometer | MS5611 |
| GNSS receiver | UBLOX NEO M9N |
| RGB drive | NCP5623C |
| Buzzer | Passive buzzer |
| Safety switch | Physical button |
| GNSS | Beidou、Galileo、 GLONASS、 GPS |
| GNSS Augmentation System | SBAS:WAAS,EGNOS,MSAS QZSS:L1s(SAIF) other：RTCM3.3 |
| Number of concurrent GNSS | 4 |
| Frequency band | GPS:L1C/A GLONASS:L10F Beidou:B1I Galileo:E1B/C |
| Horizontal accuracy | 2.0M |
| Speed accuracy | 0.05M/S |
| Nav. update rate | 25Hz(Max) |
| Acquisition | Cold start：24S Hot start：2S Aided start:2s |
| Number of satellites(MAX) | 32+ |
| Sensitivity | Tracking and nav-167dBm Cold start Hot star-148dBm Reacquisition -160dBm |
| Protocol | UAVCAN |
| Port TYpe | GHR-04V-S |
| Supported flight controller | CUAV series, Pixahwk series |
| Wave filtering | SAW+LNA+SAW |
| Anti-Electromagnetic/radio frequency interference | EMI+RFI |
| Upgrade firmware | support |
| Support Flight control type | Ardupilot/PX4*(PX4 is still working hard to adapt to the clock) |
| Input voltage | 5V |
| Operating temperature | -10~70℃ |

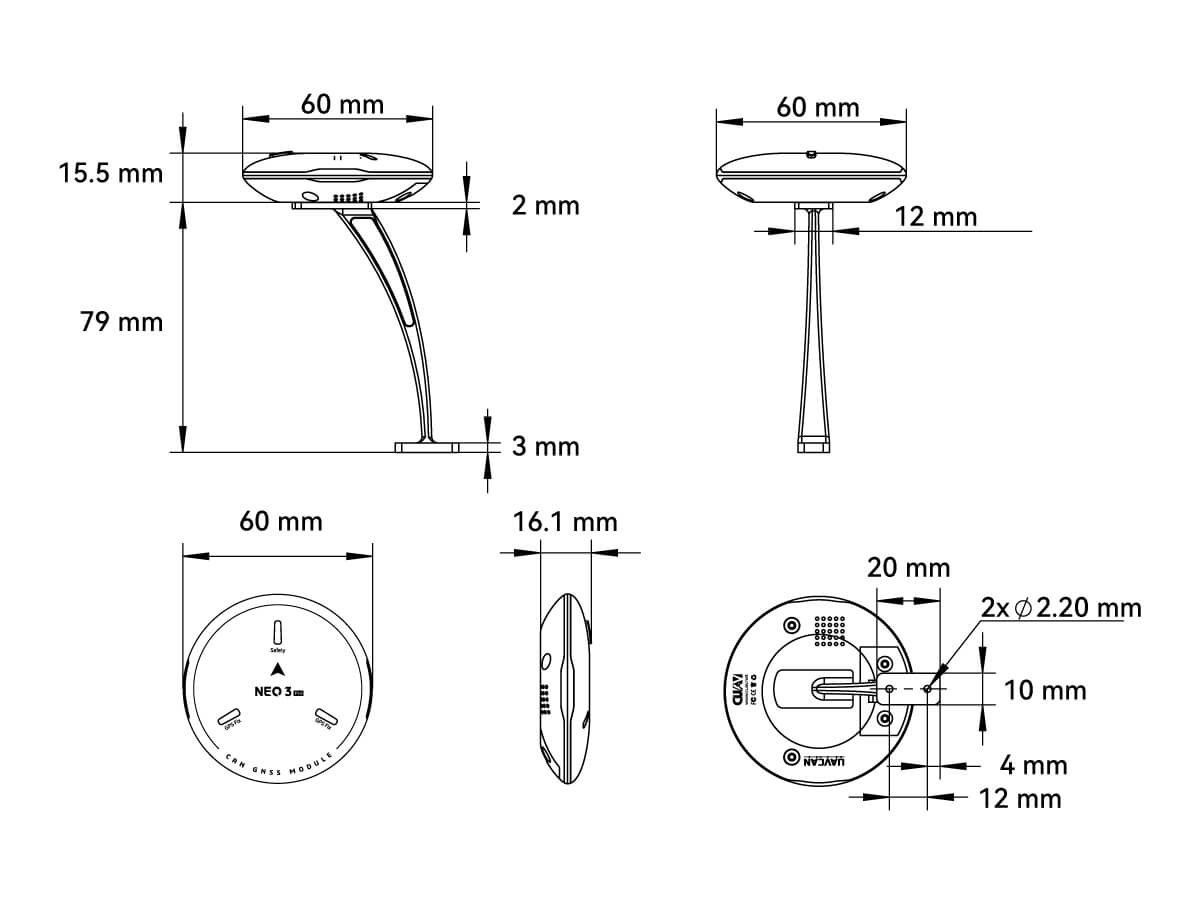

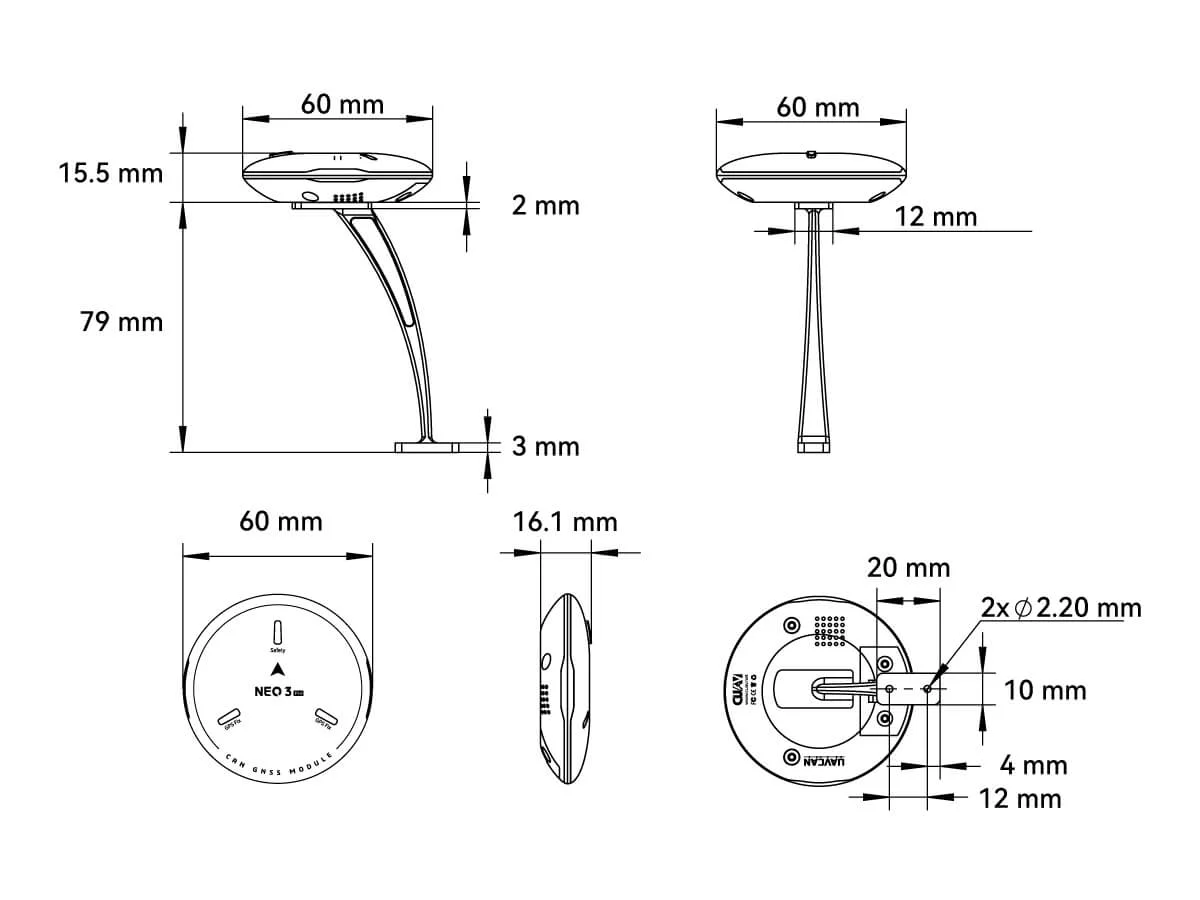

| Size | 60*60*16MM |
| Weight | 33g |
- NEO 3 Pro level accuracy when the SBAS enhancement system is turned on, the nominal accuracy is 1.5m (default); when the SBAS enhancement system is turned off, it is 2.0m
- NEO 3 Pro supports RTCM3.3 injection, but does not support RTCM output; it can achieve pseudorange differential (meter-level positioning) but does not support carrier phase differential (RTK), and it needs a base station that supports RTCM3.3 output.
Ardupilot 4.0.0 and above firmware supports NEO 3 PRO, and PX4 firmware is still in the adaptation stage.
Download
Use tutorial
Connect to V5+
Please connect it to the flight control CAN1 / CAN2 interface (CAN1 is recommended)
The connection of other PIX flight controllers is the same.
Autopilot parameter settings
You need to set flight control parameters to enable Neo 3 pro; there are different setting methods according to the flight control firmware.
ArduPilot firmware
Set the following parameters in all parameter tables of Mission planner and restart after writing
CAN_P1_DRIVERset to 1.CAN_P2_DRIVERset to 1.NTF_LED_TYPESset to 231.GPS_TYPEset to 9.
