CAN Babel Dual-Function USB Bus Adapter

USB Virtual Dual Serial Ports Technology, Simplifies Complexity.
Supports SLCAN Protocol, Debugging Efficiency Up.
Supports USB-UART Debugging, No Additional Hardware Needed.
Compact, Lightweight and Portable.

dual-function USB bus adapter.双功能 USB 总线适配器。CAN Babel

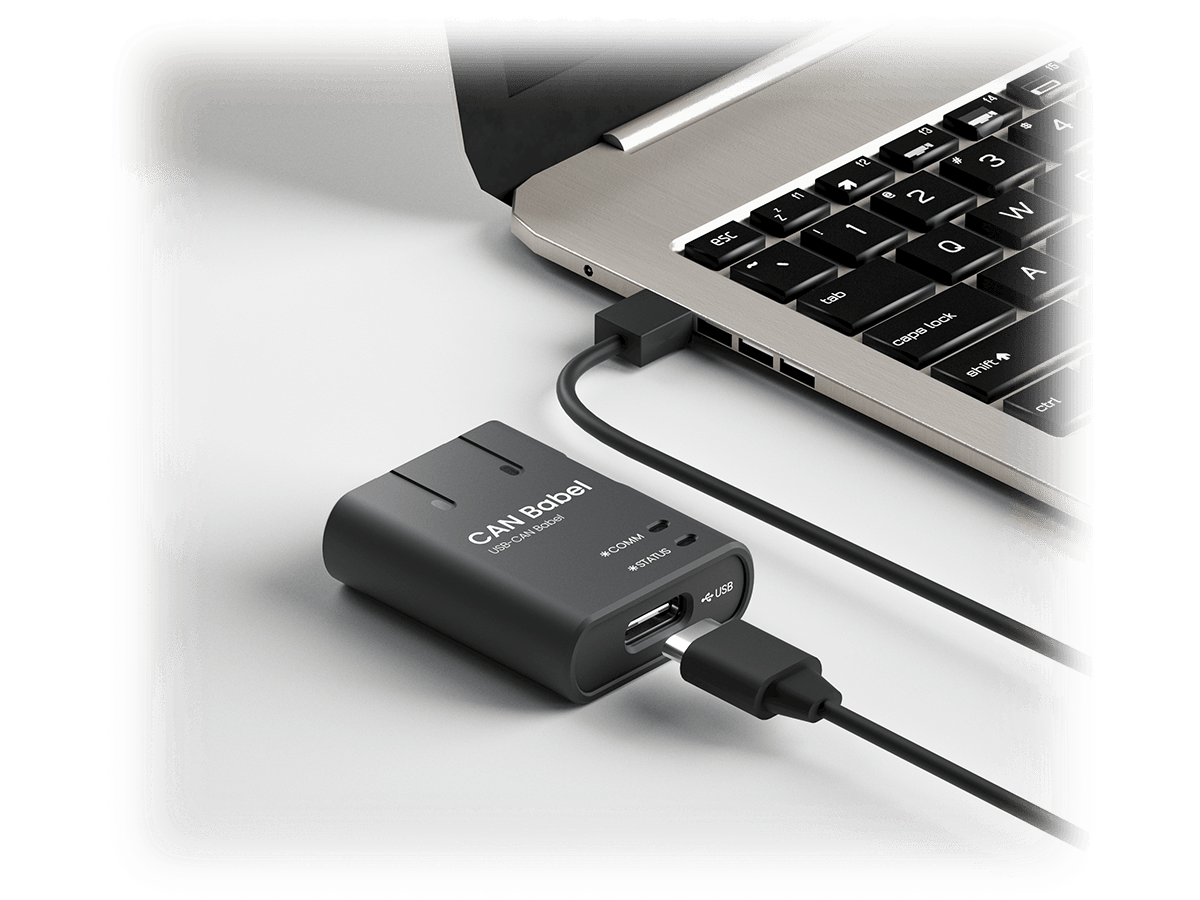

USB Virtual Dual Serial Ports Technology, Simplifies Complexity

Leveraging USB virtual dual-ports technology, a single device simultaneously delivers dual functionality: high-performance CAN communication and standard UART transparent transmission. It is simple and easy to use, completely eliminating the complexity of stacking multiple devices during debugging.

USB-UART

[SLCAN]

USB-CAN

Supports SLCAN Protocol, Debugging Efficiency Up

Supports USB-UART Debugging, No Additional Hardware Needed

Compact, Lightweight and Portable

The overall lightweight design, about the size of a USB drive, makes it highly portable. Combing performance with sleek aesthetics, it is well-suited for applications such as outdoor debugging.

Specifications & Parameters

Parameters
Processor	STM32F373CCT6
UART Baud Rate	2400bps～921600bps
Port Type
CAN	2
USART	1
Hardware Parameter
Operating Voltage	4.75V～5.25V
Operating Temperature	-40℃~+85℃
Size	36mm28mm10.5mm
Weight	7.7g

CAN Babel Dimensions Chart

CAN Babel Pinouts

CAN Babel Video
