NC-HUB Multi-Function Switch Hub Module
- CAN / I2C Bus Expansion
- Support Multi-Device Collaboration
- Multi-Circuit Protection
- Compact & Portable, Rich Interfaces
- CNC Aluminum Alloy Shell
- LED Status Indicator
Rich Interfaces, Flexible Expansion
NC-HUB integrates a 5-port 100Mbps full-duplex Ethernet switching chip and a 5-channel CAN/I2C bus distribution circuit, providing rich interfaces and enabling flexible expansion of multiple peripherals. A single module can provide both network and wiring expansion, effectively reducing the wiring complexity at the controller end. It also reduces issues such as line redundancy and potential wiring faults.
A single module can provide both network and wiring expansion, effectively reducing the wiring complexity at the controller end. It also reduces issues such as line redundancy and potential wiring faults.
Multi-Circuit Protection, Safe & Stable Operation

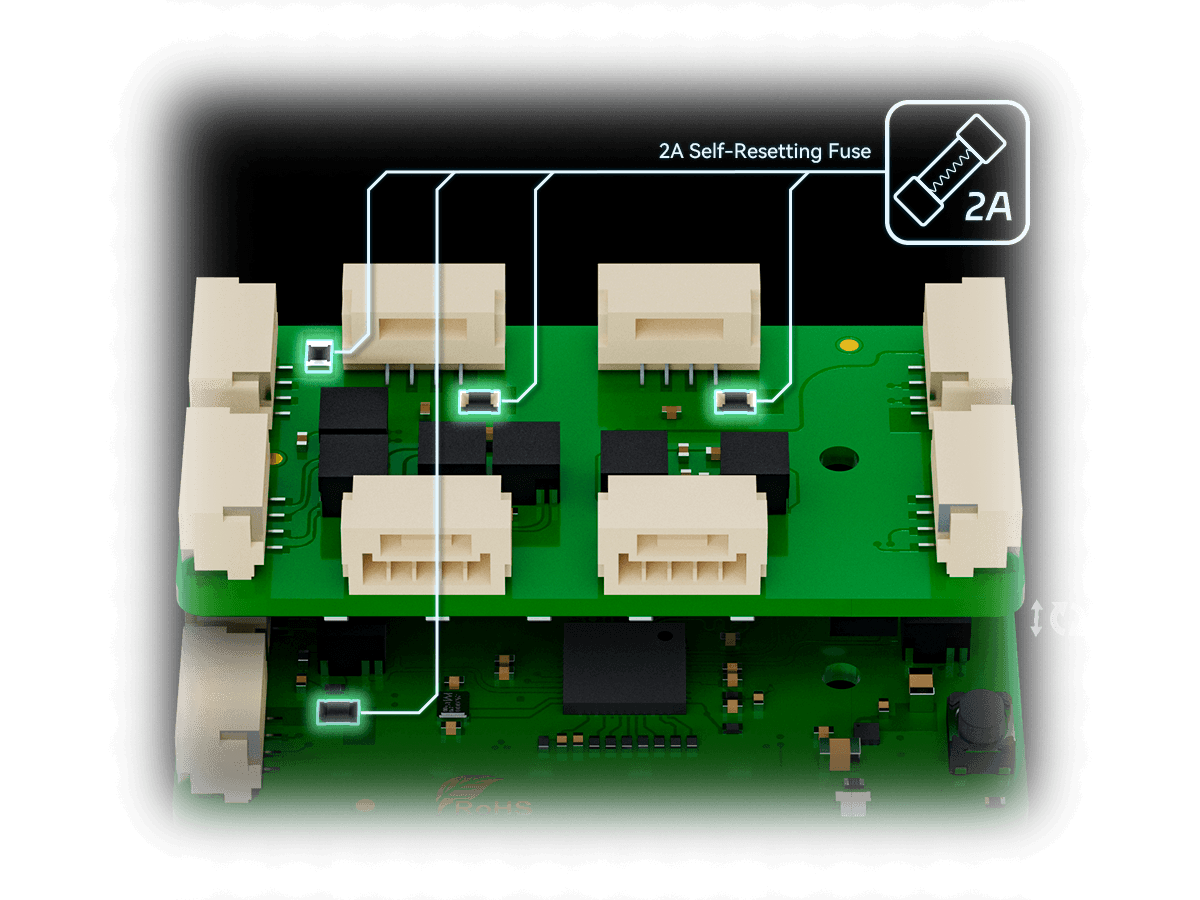

Single-port integrated 2A self-resetting fuse, which cuts off the circuit in milliseconds during overcurrent and automatically recovers. It forms a triple safety protection system, which can prevent overvoltage, overcurrent, and short circuits, effectively protecting core
equipment.
Minimal Design, Compact & Portable
The NC-HUB is compact and lightweight, taking up little space and is easy to carry, meeting the needs of outdoor debugging and on-site operations.

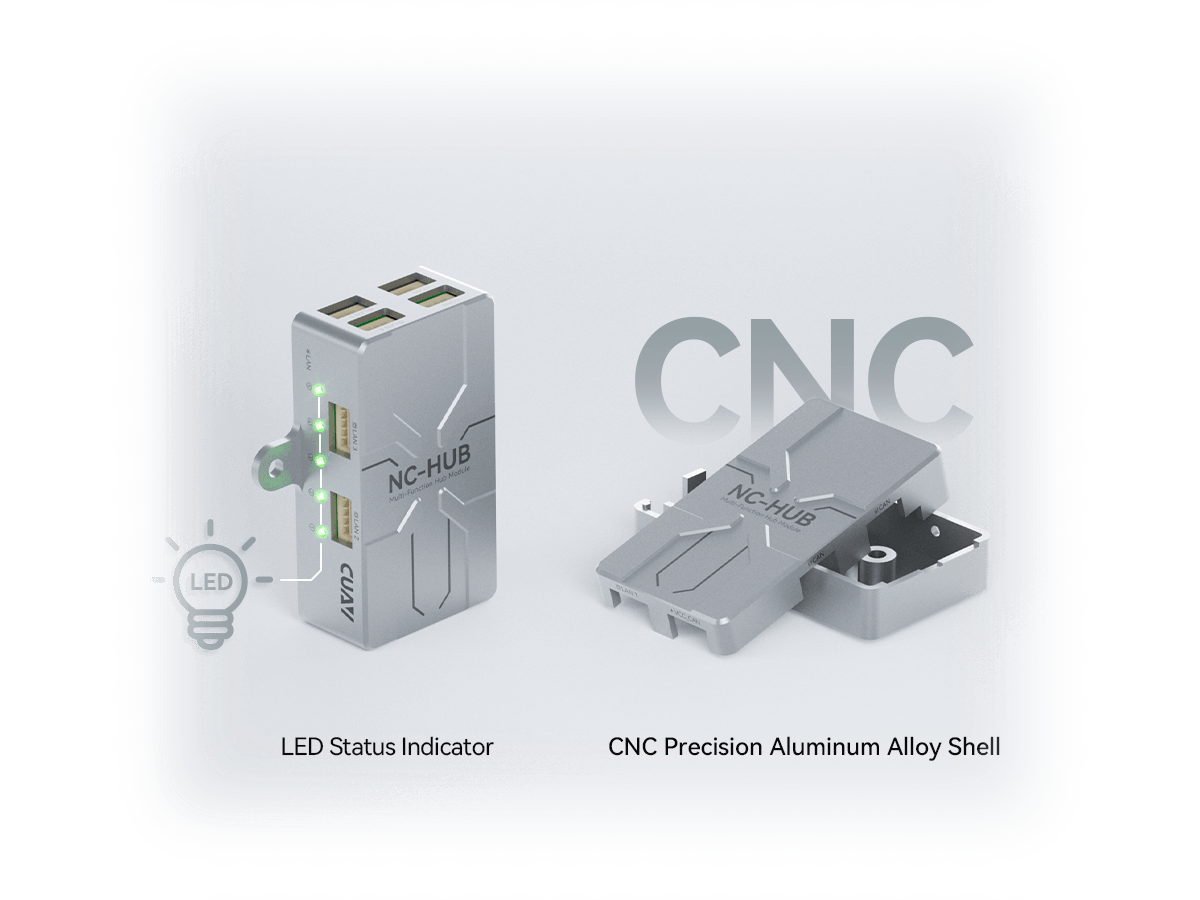

CNC Precision Aluminum Alloy Shell, LED Status Indicator
The shell is made of CNC aluminum alloy, which is high in strength, wear-resistant, and impact-resistant, providing a certain degree of protection and anti-interference capability to ensure the stability of equipment operation. It also features LED status indicators to quickly identify the device’s operating status and improve debugging efficiency
Specification & Parameters
| Basic Parameters | |
| Ethernet Ports | 5 |
| ETH Rate | 100 Mbps |
| Switching Capacity | 1 Gbps |
| Packet Forwarding Rate | 744 Kpps |
| Auto-MDI/ X | Support |
| CAN Ports | 5 |
| CAN Port Power Input | 5V |
| CAN Port Power Output | Per Port: 5V/1A, Peak: 2A Total: 5V/ 1A, Max: 4A |
| Port Protection | Single-Port Integrated 2A Self-Resetting Fuse |
| Protocol Compatibility | CAN/12C |
| Operating Temperature | 0℃~70℃ |
| Size | 39.0 x 44.0 x 13.1mm (Including Fixing Hole) |
| Weight | 16.1g |
| Shell Material | CNC Aluminum Alloy |
NC-HUB Dimensions chart
NC-HUB Pinouts
