C-RTK3 X20P All-Band RTK GNSS Module
- All-Band and All-Constellation Coverage
- High-Integrated and High-Compatible Design
- Multi-Layer Security Protection System
- u-blox X20 GNSS Platform
- RM3100 Electronic Compass
- Support Galileo OSNMA Navigation Message Authentication

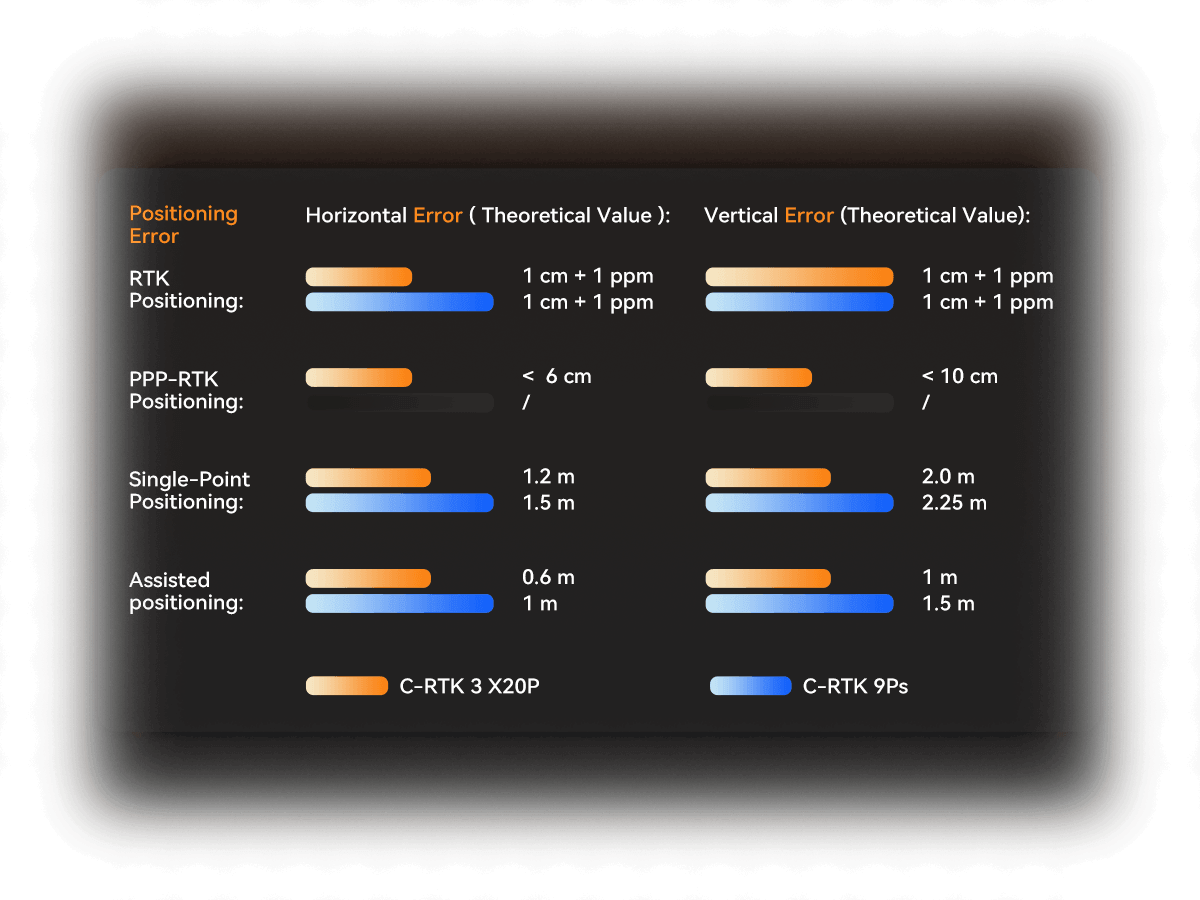

Full-Dimension and Precise Positioning | Excellent Accuracy
C-RTK 3 X20P achieves a breakthrough in accuracy through multi-mode positioning technology. It can meet the application requirements from the centimeter to decimeter level. Its convergence speed is excellent, and with a high navigation update rate of 25Hz, it can accurately capture position changes in high-speed dynamic scenarios, providing reliable data support for real-time control devices.
All-Band and All-Constellation Coverage | Capture Signals Accurately
The module fully covers the L1/L2/L5/L6/L-band frequency bands and supports concurrent reception of six major global satellite constellations: GPS, Galileo, BeiDou, GLONASS, QZSS, and NavIC. This is significantly improving signal acquisition capabilities. The combined design of multi-constellation and multi-band effectively reduces the impact of signal obstruction in complex environments such as urban canyons, mountains, and forests, and maintains stable positioning even in weak-signal scenarios, thereby expanding the range of applications.
Industrial-Grade Strong Adaptability | Undeterred by Harsh Environments
Adhering to industrial-grade design standards, the module operates in a temperature range of -15℃ to +85℃, easily coping with extreme environments such as high temperatures and extreme cold. Its anti-vibration meets the MIL-STD-810G standard (7.7g RMS) and is suitable for high-frequency vibration scenarios such as vehicles, agricultural machinery, and industrial robots.
Front and
back sides
High-Integrated and High-Compatible Design | One-Stop Efficient Solution
C-RTK 3 X20P adopts a highly integrated solution, with a built-in X20 RTK full-band receiver, RM3100 industrial-grade electronic compass, and STM32H5 processor. It is also compatible with u-blox AssistNow Live Orbits accelerated startup service, PointPerfect global calibration service, and SBAS satellite augmentation system, enabling users to enjoy value-added functions without additional development, shortening product development cycle, and helping products to be launched quickly
End-to-End Full-Link Security Protection | Multiple Anti-Jamming Protection

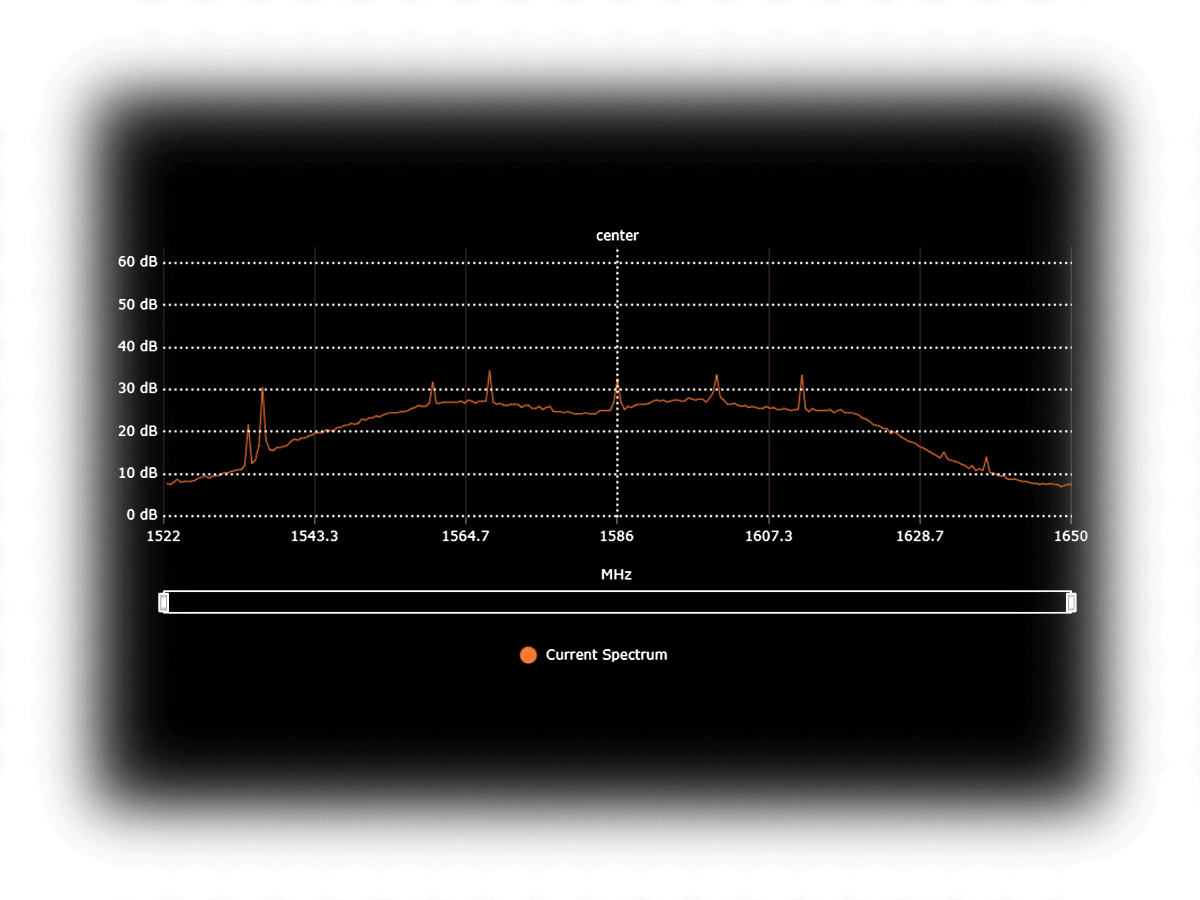

With a built-in spectrum analyzer, it monitors RF environmental interference in real time and dynamically optimizes the reception strategy. The noise figure in the L1/B1/E1 bands is as low as 6.5dB, providing a strong capability to recived week signals.
Encrypted
Navigation Message
Blocks Forged
Signal Injection
It supports Galileo OSNMA navigation message authentication, identifies spoofed satellite signals, and prevents positioning data deception. At the hardware level, it features a secure boot function that executes only legitimate firmware signed by u-blox. Combined with an encrypted storage area design, it can prevent malicious code injection and sensitive data leakage, comprehensively ensuring the security of the positioning system.
Multi-Device Compatibility | Standardized Positioning Calibration
It has a rich interface configuration, supports multiple communication methods such as DroneCAN, UART, and USB, and can be flexibly adapted to different hardware systems. The device driver has been pre-adapted and supports the built-in magnetic calibration and positioning calibration processes of the platform. It can be plug-and-play.
It supports UART/CAN interfaces and can be flexibly adapted to different hardware systems. It is widely applicable to scenarios requiring precise positioning, such as intelligent driving, agricultural machinery navigation, robots, and unmanned systems.
C-RTK 3 X20P Dimensions Chart
C-RTK 3 X20P Pinouts
ArduPilot, Dronecode, and PX4 Long-Term Partners
CUAV Technology Co., Ltd. is a National High-Tech Enterprise and Guangdong Provincial Specialized, Sophisticated, Innovative SME that focuses on open-source unmanned system innovation technologies. It integrates R&D, production, sales, after-sales service, and technical support into a cohesive operation. The company maintains long-term collaborative partnerships with leading open-source organizations such as ArduPilot, Dronecode, and PX4.
Supports ArduPilot and PX4 firmware
