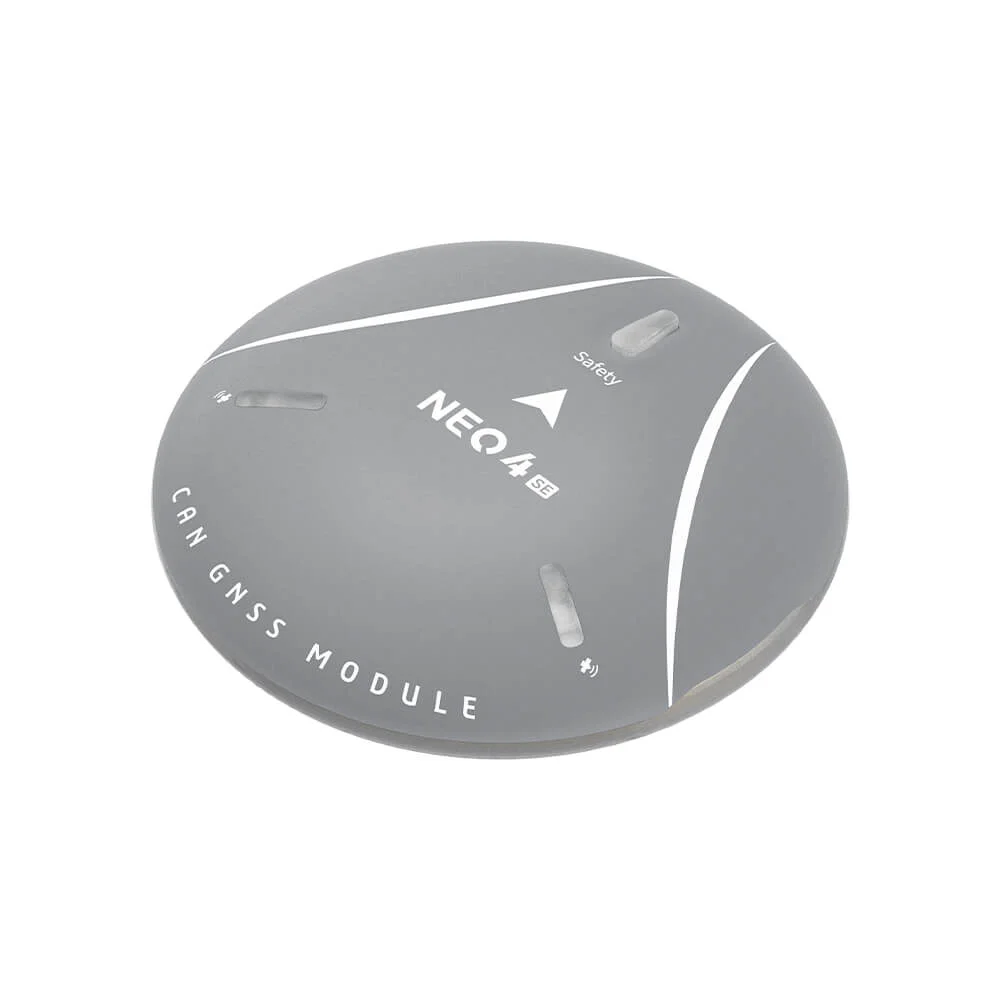

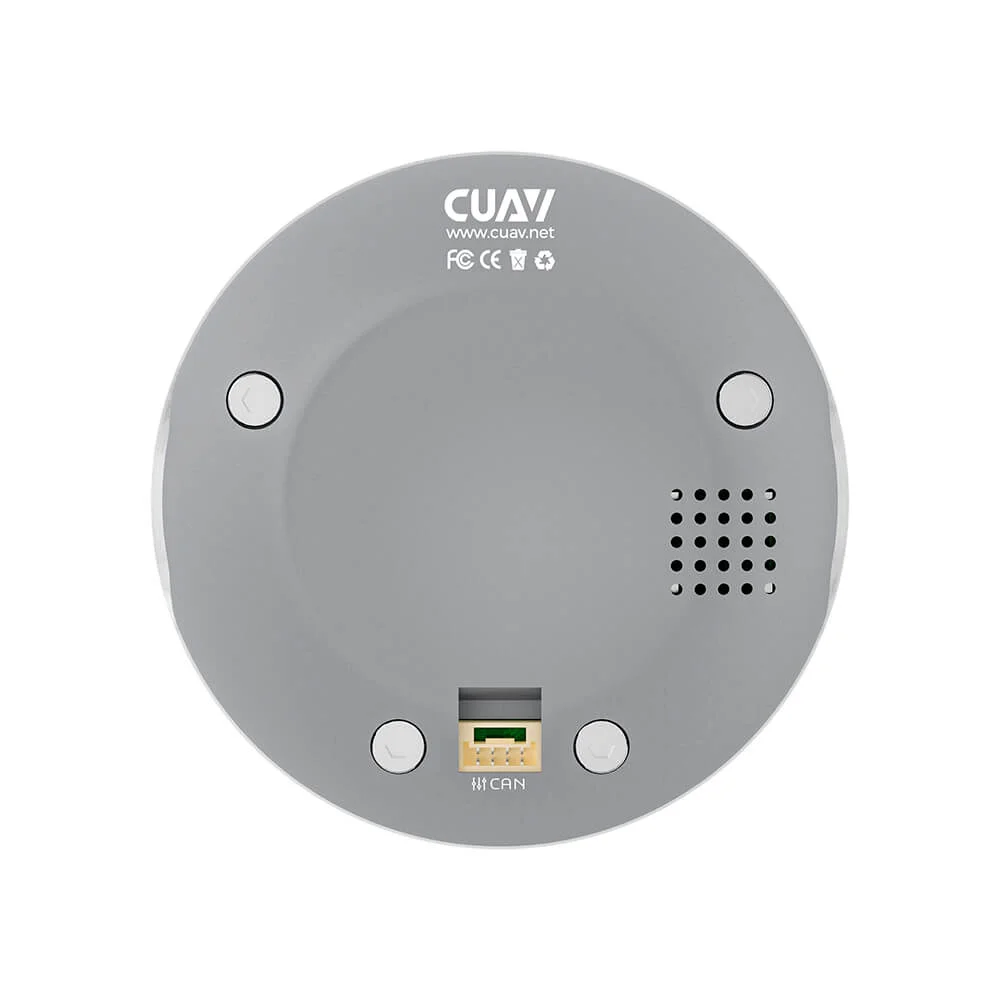

NEO 4 SE GNSS DroneCAN Module

  • u-blox M10 Satellite Receiver System.
  • Self-Developed High Flexibility M4C Architecture Software.
  • Built-In ST IIS2MDC Electronic Compass.
  • RGB Full-Color Status Light.
  • DroneCAN Protocol.
  • Compatible with ArduPilot and PX4 Open Source Platform Protocol Stacks.

Support Four Satellites | u-blox M10 Satellite Receiver System

NEO 4 SE can receive four GNSS concurrently, supporting BeiDou, Galileo, GLONASS, GPS systems. The receiver can select the optimal signals to maximize location availability, allowing GNSS module to perform well even in challenging environments such as urban canyons.

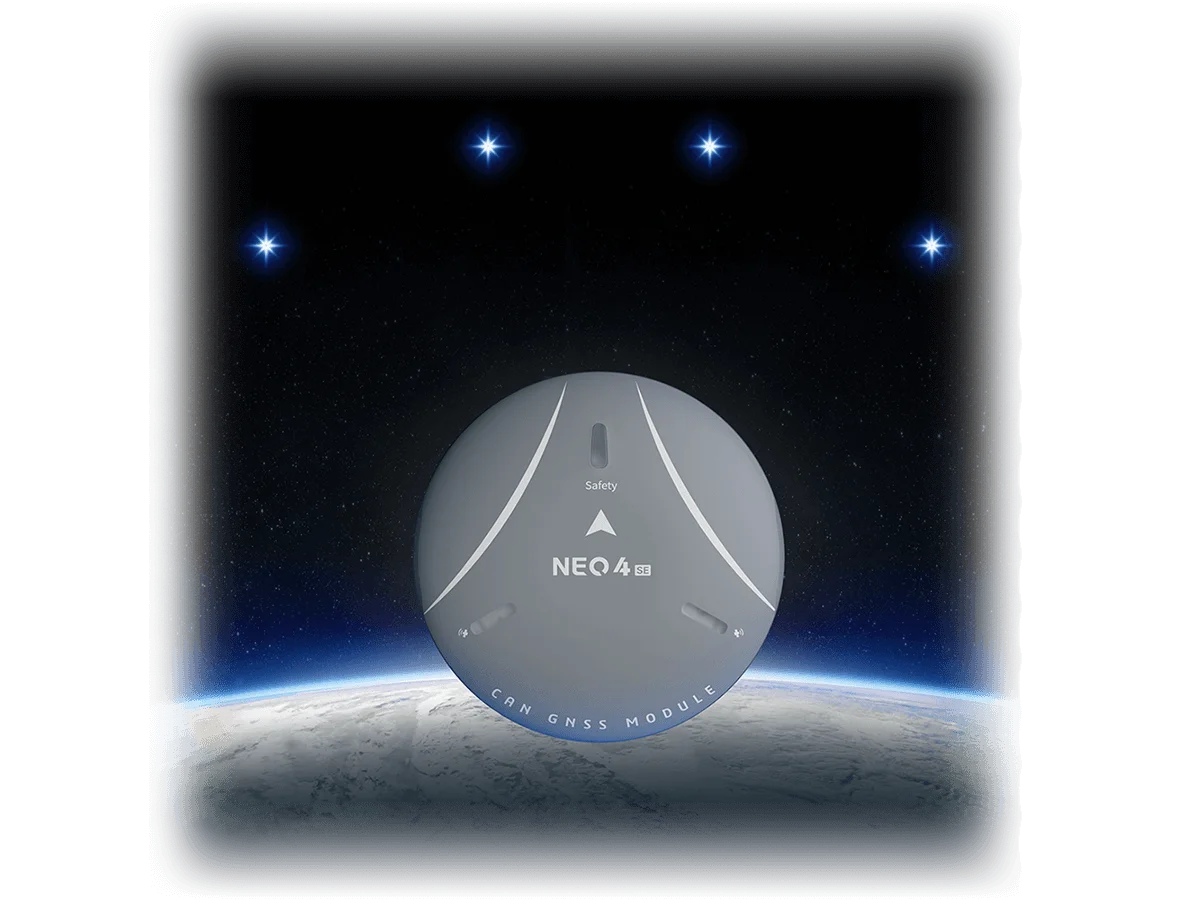

UAV DroneCAN GNSS Simultaneous reception by the four satellite systems. 无人机 DroneCAN 全球卫星定位四卫星系统同时接收. NEO 4 SE
GPS
GLONASS
Galileo
BeiDou

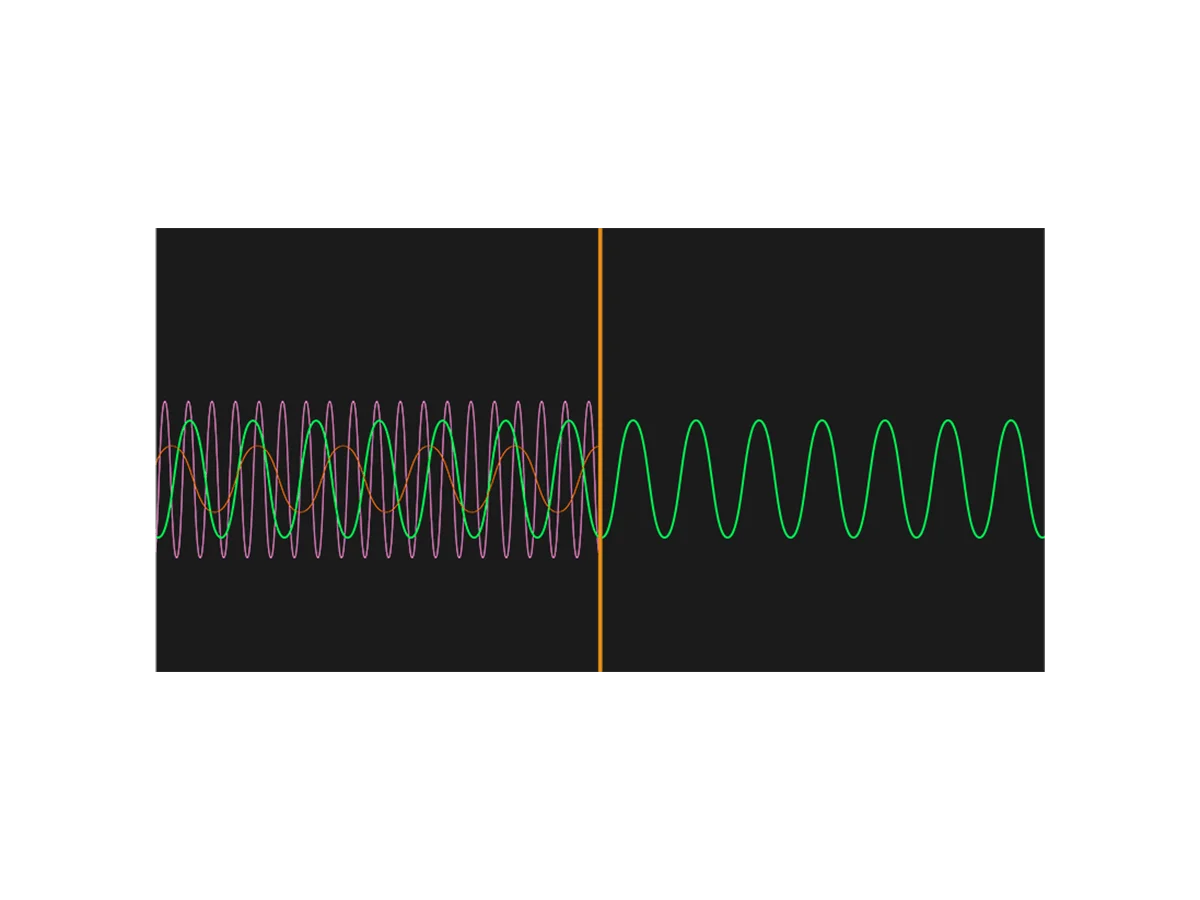

UAV DroneCAN GNSS Filtering. 无人机 DroneCAN 全球卫星定位滤波. NEO 4 SE
after filtering
before filtering

Precise Positioning | Integrate Dual SAW + LNA

NEO 4 SE integrates TCXO, dual LNA architecture, together with active receiving antenna composed of RF filtering system, which can provide outstanding receiving sensitivity and acquisition time, effectively enhancing positioning accuracy.

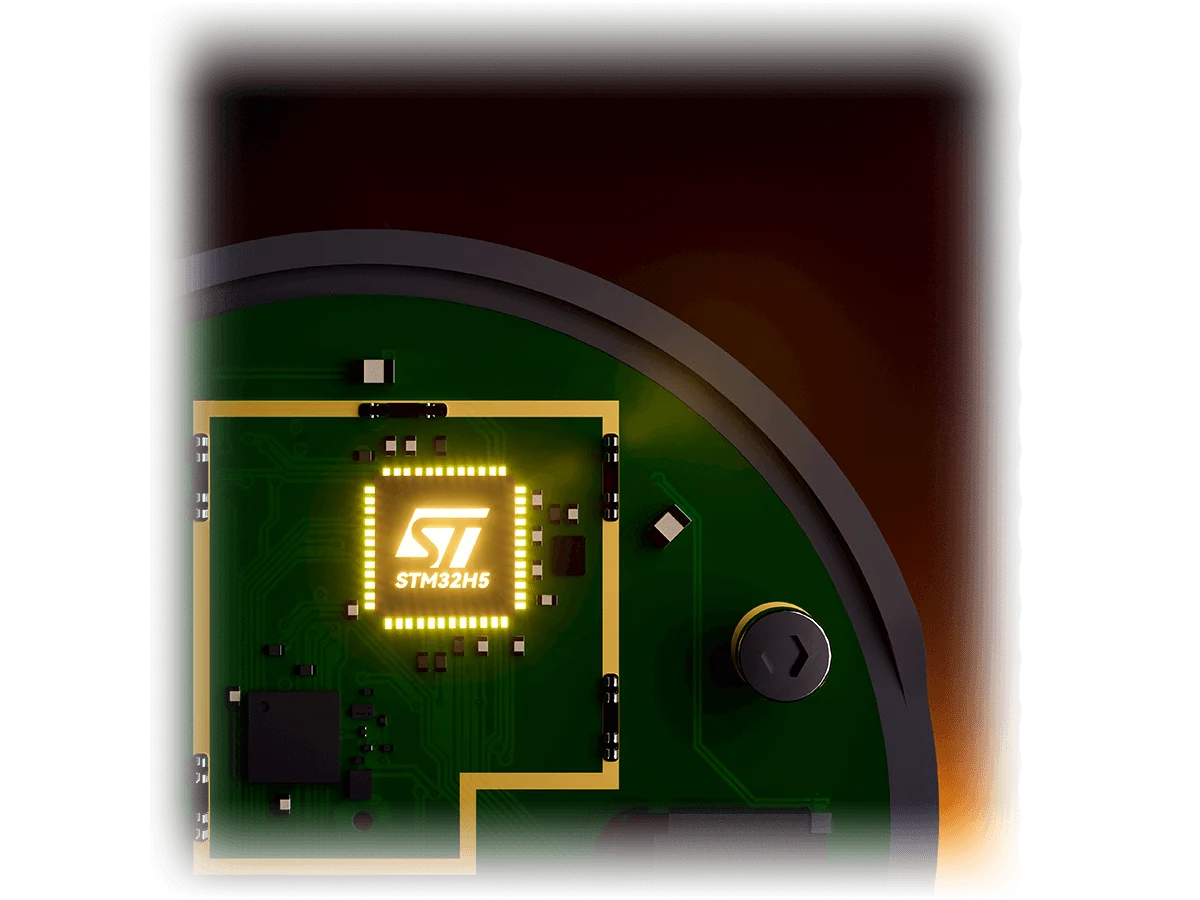

High-Performance STM32H5 Processor | Self-Developed M4C Architecture Software

It adopts brand-new STM32H5 Arm® Cortex®-M33 CPU processor, running frequency up to 250MHz, providing the system with stronger computing power. It runs the highly flexible M4C architecture software developed by CUAV, which can achieve customized development and upgrading efficiently.
UAV DroneCAN GNSS STM32H5 Processor. 无人机 DroneCAN 全球卫星定位 STM32H5 处理器. NEO 4 SE

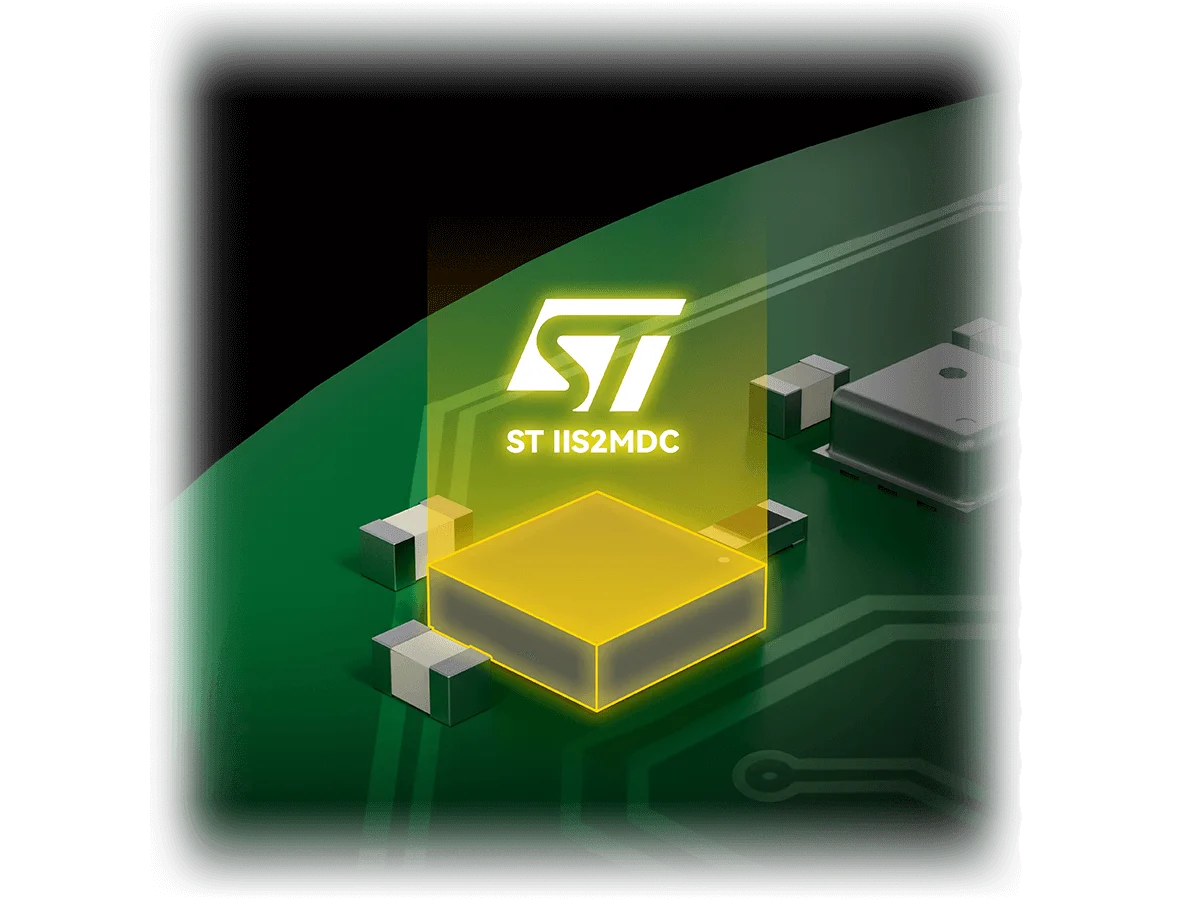

UAV DroneCAN GNSS ST-IIS2MDC Sensor. 无人机 DroneCAN 全球卫星定位 ST-IIS2MDC 磁罗盘磁力计. NEO 4 SE

Strong Anti-Interference | Built-In ST IIS2MDC Electronic Compass

Integrating new ST IIS2MDC electronic compass internally, NEO 4 SE has a magnetic field dynamic range of up to ±50Gs and integrates temperature offset compensation function. It has a high dynamic range and strong anti-magnetic field interference ability among similar products.

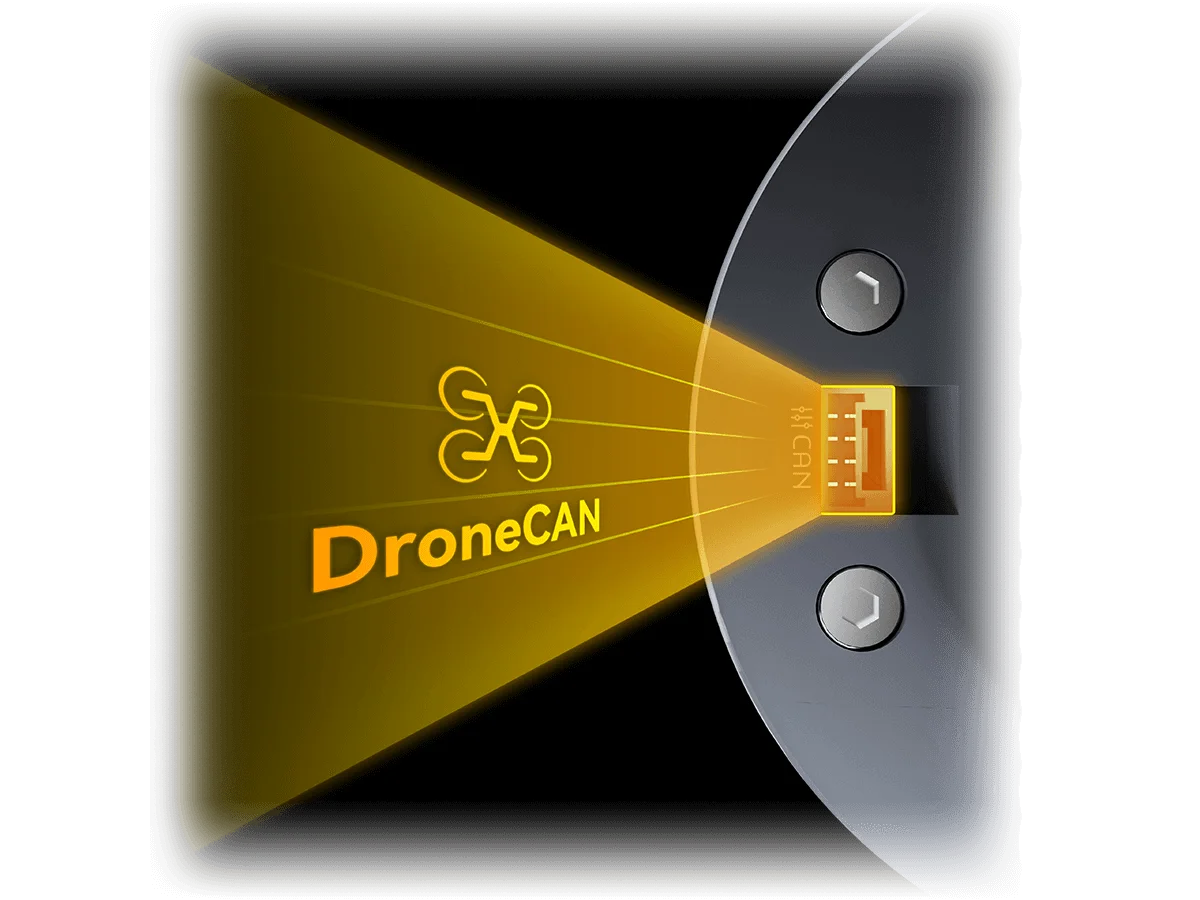

Adopt DroneCAN Protocol | Compatible with Mainstream Open Source Platform

NEO 4 SE adopts DroneCAN protocol and is compatible with ArduPilot and PX4 open source platform protocol stacks. It has a wide range of application scenarios and stronger expandability and flexibility.

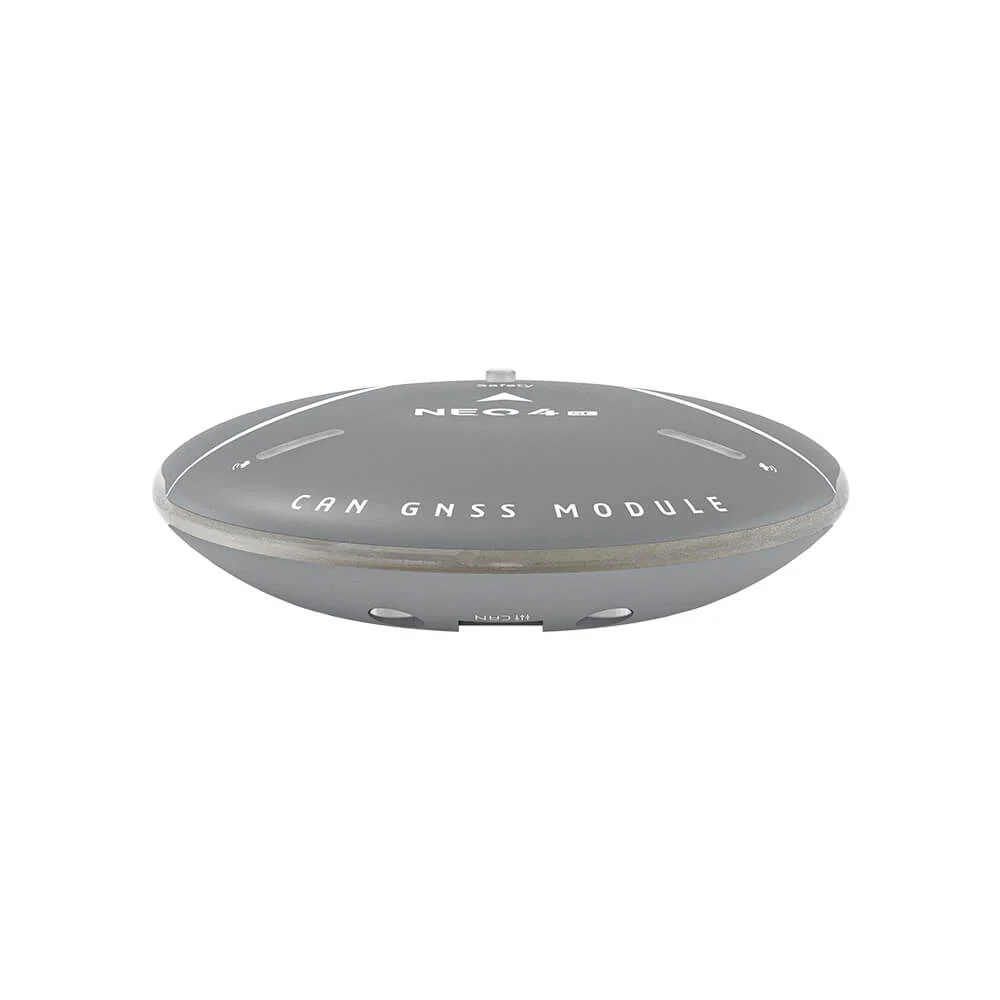

UAV DroneCAN GNSS. 无人机 DroneCAN 全球卫星定位. NEO 4 SE

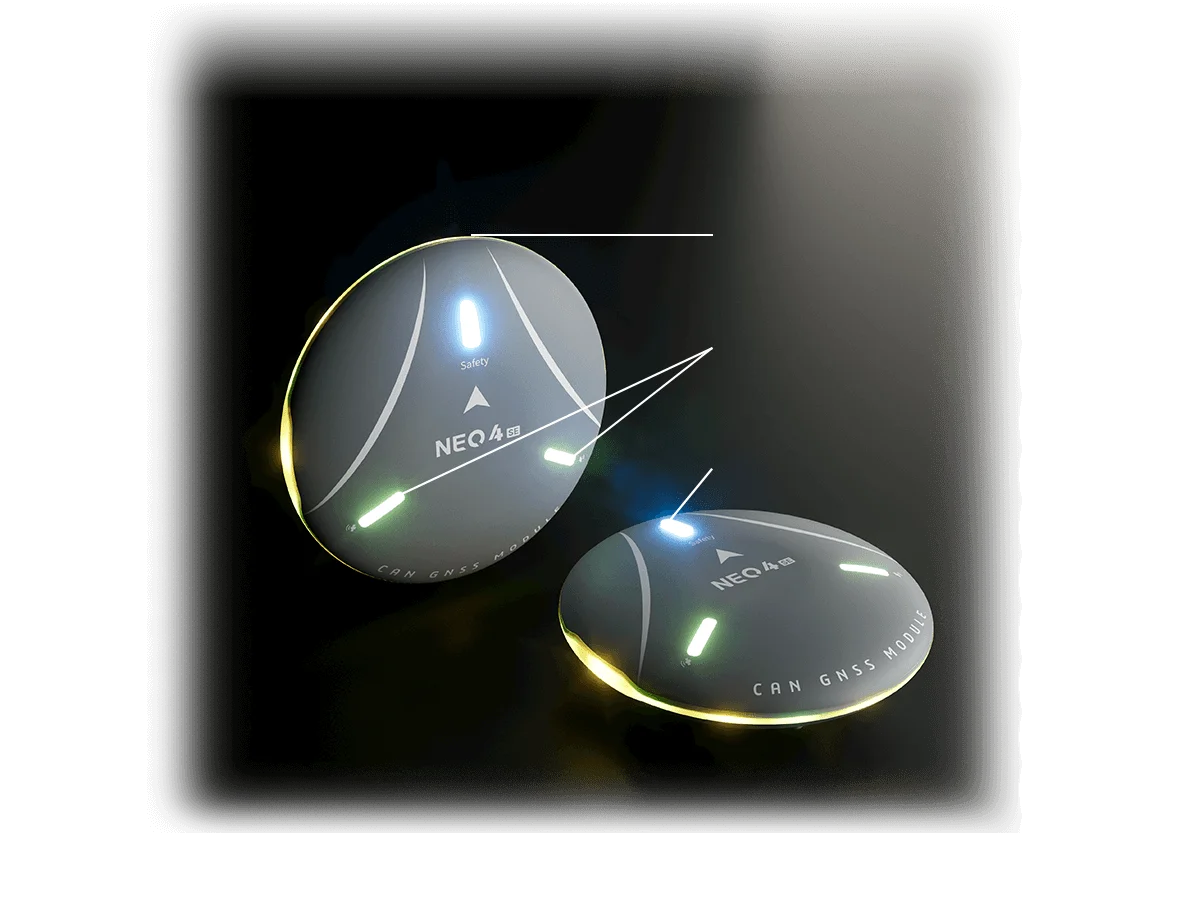

UAV DroneCAN GNSS RGB status light. 无人机 DroneCAN 全球卫星定位 RGB 状态灯. NEO 4 SE
Flight controller status ring light
GPS positioning indicator light
Safety switch & indicator light

Multi-Functional RGB Status Light | Controller Disarming Switch

It is equipped with an 8-channel bus RGB light group, which can present multi-level and rich status effects. It is linked with built-in buzzer in multiple frequencies, and generate a variety of recognizable states through intelligent scene recognition, covering various work modes such as controller disarming switch, battery level, positioning, fault, etc.

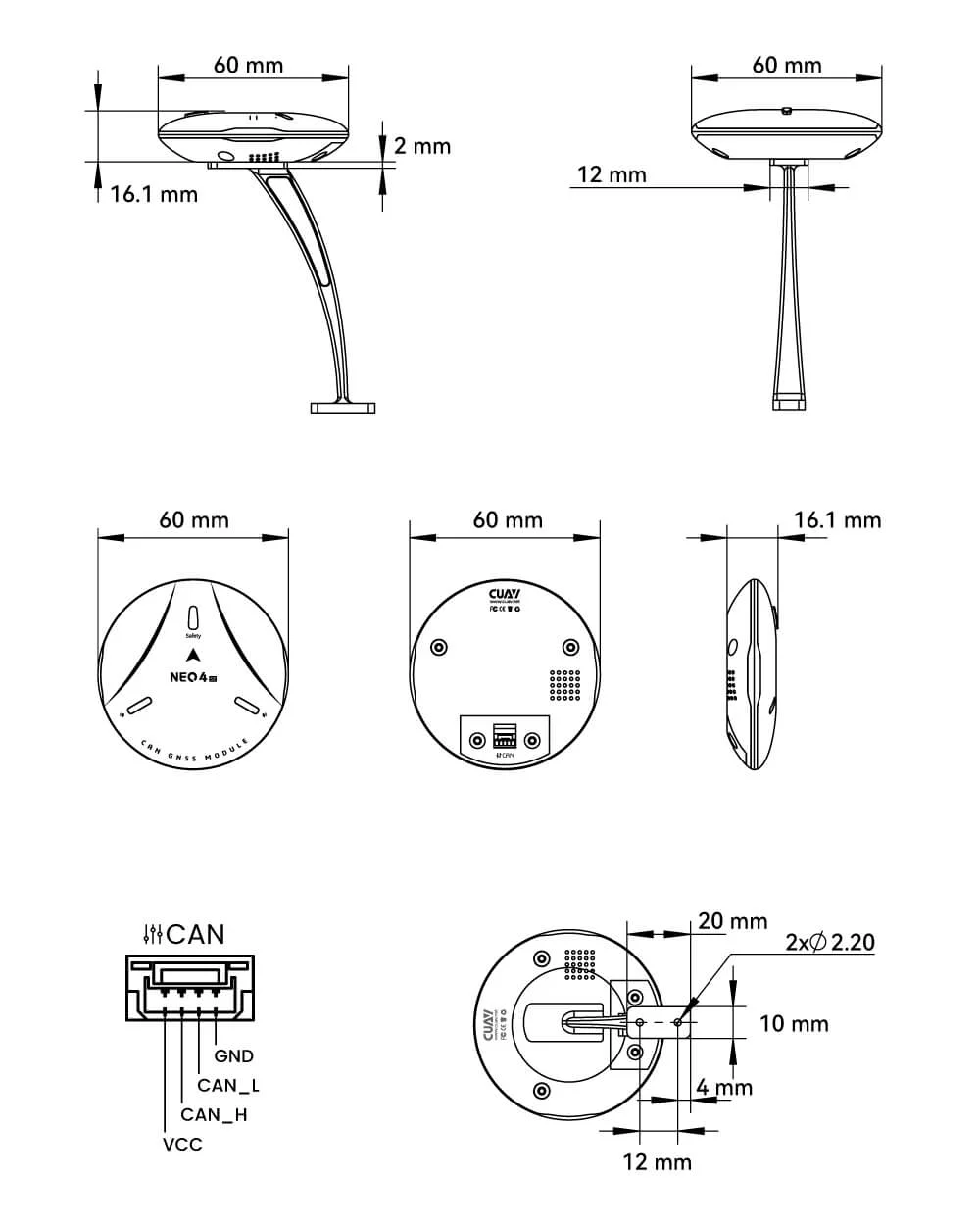

Dimensions chart

UAV DroneCAN GNSS Dimension. 无人机 DroneCAN 全球卫星定位尺寸. NEO 4 SE

ArduPilot, Dronecode, and PX4 Long-Term Partners

CUAV Technology Co., Ltd. is a National High-Tech Enterprise and Guangdong Provincial Specialized, Sophisticated, Innovative SME that focuses on open-source unmanned system innovation technologies. It integrates R&D, production, sales, after-sales service, and technical support into a cohesive operation. The company maintains long-term collaborative partnerships with leading open-source organizations such as ArduPilot, Dronecode, and PX4.

Supports ArduPilot and PX4 firmware
